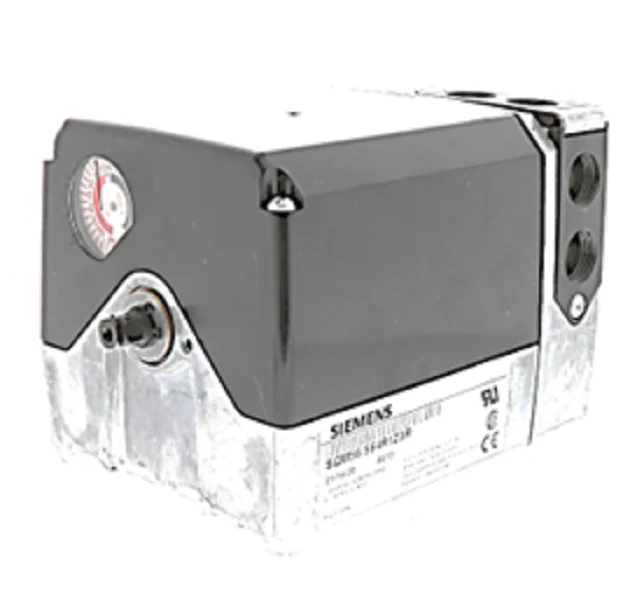

Siemens Combustion SQM56.564R1Z3R Actuator
The Siemens Combustion SQM56.564R1Z3R Actuator is a high-torque reversing electromotive motor engineered for the precise positioning of air dampers and flow control valves. Dedicated to large-scale industrial burner systems, this unit delivers 310 lb-in torque with a 37-second runtime for a 90-degree clockwise rotation. Operating on a 120V power supply, the SQM56.564R1Z3R features a robust die-cast aluminum housing and backsplash-free gearing to ensure repeatable modulating accuracy. This HVAC damper motor supports multiple control signals, including 4-20mA and 0-10VDC, via exchangeable circuit boards. Integrated with six internal auxiliary switches and a 1000 Ohm potentiometer, it allows for seamless high and low-fire adjustments. For field commissioning, the Siemens SQM56 series incorporates a manual override toggle and a shaft release button to facilitate rapid manual alignment without power. Designed for durability in demanding process heating environments, it maintains a NEMA 4 protection rating when properly mounted.
Key Benefits- High-Torque Performance: Provides 310 lb-in (35 Nm) of force to handle heavy-duty dampers and butterfly valves.
- Precise Modulating Control: Synchronous motor with backlash-free gearing ensures exact positioning and repeatability.
- Field Flexibility: Features exchangeable circuit boards and a dual-ended 3/8-inch square shaft for various mounting and signal requirements.
- Easy Commissioning: Includes an auto/manual selector switch and external shaft position indicator for simplified troubleshooting.
- Switch Configuration: Equipped with six adjustable internal switches (limit and auxiliary) for complex sequence control.
What input signals are compatible with this actuator?
The SQM56.564R1Z3R is a multi-input unit supporting 4 to 20 mA, 0 to 135 Ohm, 0 to 10 VDC, and floating control signals depending on the installed circuit board.
Can the rotation direction be reversed?
While this model is factory-configured for clockwise (CW) rotation, it is a reversing actuator designed to drive in both directions to maintain the target setpoint within its 90-degree range.
Is this suitable for outdoor use?
Yes, when installed with appropriate conduit connectors, the die-cast housing meets NEMA 4 and IP54/65 standards for protection against dust and water spray.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $3,641.89
-65%$3,641.89
$1,274.66Siemens Combustion SQM56.564R1Z3R Actuator
The Siemens Combustion SQM56.564R1Z3R Actuator is a high-torque reversing electromotive motor engineered for the precise positioning of air dampers and flow control valves. Dedicated to large-scale industrial burner systems, this unit delivers 310 lb-in torque with a 37-second runtime for a 90-degree clockwise rotation. Operating on a 120V power supply, the SQM56.564R1Z3R features a robust die-cast aluminum housing and backsplash-free gearing to ensure repeatable modulating accuracy. This HVAC damper motor supports multiple control signals, including 4-20mA and 0-10VDC, via exchangeable circuit boards. Integrated with six internal auxiliary switches and a 1000 Ohm potentiometer, it allows for seamless high and low-fire adjustments. For field commissioning, the Siemens SQM56 series incorporates a manual override toggle and a shaft release button to facilitate rapid manual alignment without power. Designed for durability in demanding process heating environments, it maintains a NEMA 4 protection rating when properly mounted.
Key Benefits- High-Torque Performance: Provides 310 lb-in (35 Nm) of force to handle heavy-duty dampers and butterfly valves.
- Precise Modulating Control: Synchronous motor with backlash-free gearing ensures exact positioning and repeatability.
- Field Flexibility: Features exchangeable circuit boards and a dual-ended 3/8-inch square shaft for various mounting and signal requirements.
- Easy Commissioning: Includes an auto/manual selector switch and external shaft position indicator for simplified troubleshooting.
- Switch Configuration: Equipped with six adjustable internal switches (limit and auxiliary) for complex sequence control.
What input signals are compatible with this actuator?
The SQM56.564R1Z3R is a multi-input unit supporting 4 to 20 mA, 0 to 135 Ohm, 0 to 10 VDC, and floating control signals depending on the installed circuit board.
Can the rotation direction be reversed?
While this model is factory-configured for clockwise (CW) rotation, it is a reversing actuator designed to drive in both directions to maintain the target setpoint within its 90-degree range.
Is this suitable for outdoor use?
Yes, when installed with appropriate conduit connectors, the die-cast housing meets NEMA 4 and IP54/65 standards for protection against dust and water spray.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
