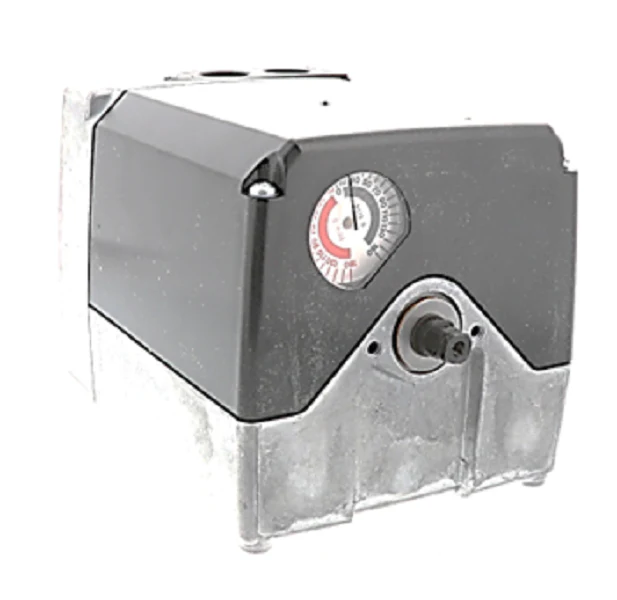

Siemens Combustion SQM50.364R1G3 Actuator
The Siemens SQM50.364R1G3 Actuator is a high-precision reversing actuator designed for the accurate positioning of flow control valves, butterfly valves, and damper motor applications in industrial combustion systems. Operating on 120V (110V nominal), this unit delivers a robust 90 in-lbs torque and a rapid 12-second running time for a 90-degree stroke at 60Hz. Engineered for maximum reliability in medium to large-capacity oil and gas burners, the SQM50.364R1G3 features a 3/8" square dual-ended shaft and is field-reversible, providing essential flexibility for complex site configurations.
This technical-grade damper actuator is equipped with 6 internal switches, including two limit switches and four easily adjustable auxiliary switches for precise end-positioning and sequencing. The reversing actuator supports advanced modulation through 4-20 mA, 0-10 Vdc, or 0-135 ohm signals when paired with the appropriate exchangeable circuit boards. With its UL and CSA listings, this Siemens combustion component ensures compliance and high repeatability in demanding thermal processing environments.
Key Benefits- High-Torque Performance: Provides 90 in-lbs of torque, ensuring reliable movement of heavy dampers and valves.
- Fast Response Time: A 12-second stroke speed (60Hz) enables rapid adjustments for tighter process control.
- Multi-Switch Configuration: Integrated 6-switch assembly allows for complex interlocking and positioning without external modules.
- Installation Flexibility: The 3/8" square dual-ended shaft and reversible rotation direction simplify the replacement of legacy actuators.
- Robust Environmental Rating: Designed to operate in temperatures ranging from -4°F to 140°F, suitable for various mechanical room conditions.
What is the shaft size for the SQM50.364R1G3?
This model features a 3/8" square dual-ended shaft (AGA58.4), making it compatible with a wide range of Siemens linkage kits and mounting brackets.
Can the rotation direction be changed in the field?
Yes, while the factory setting is typically counterclockwise (facing the gear end), the unit is field-reversible to suit specific burner requirements.
What control signals does this actuator accept?
The SQM5 series is modular; depending on the internal potentiometer and electronic board, it can handle 4-20 mA, 0-10V, or floating control inputs.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,729.16
-65%$1,729.16
$605.21Siemens Combustion SQM50.364R1G3 Actuator
