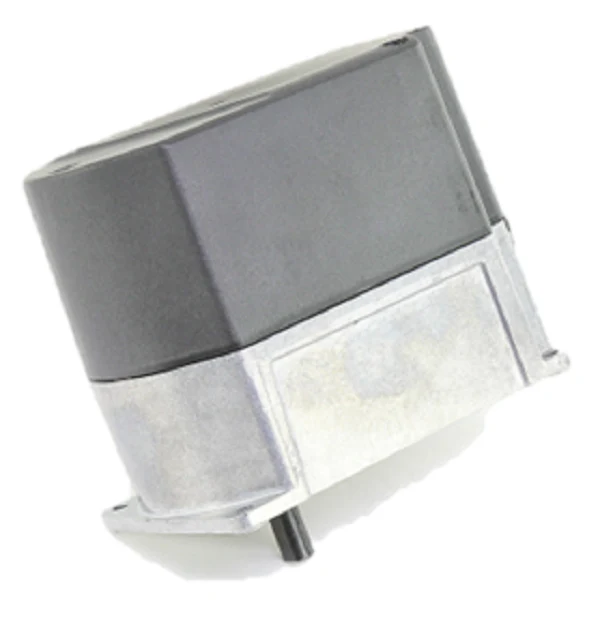

Siemens Combustion SQM45.295B9 Actuator
The Siemens SQM45.295B9 Actuator is a precision-engineered electromotoric actuator designed for the load-dependent control of gas and oil burners. Operating as a critical component within the Siemens LMV5 Linkageless System, this unit facilitates high-accuracy positioning of air dampers and butterfly valves through its CAN bus communication protocol. Engineered with a #5 drive shaft (10mm D-shaft), the SQM45.295B9 delivers a nominal torque of 3 Nm (27 in-lb) and a holding torque of 1.5 Nm. Its synchronous stepper motor ensures a consistent running time of 10 seconds for 90° rotation, making it ideal for thermal process plants requiring rapid, reliable response times. The die-cast aluminum housing and IP54 rating provide durable protection in industrial environments, while the plastic spur gears are permanently lubricated for localized maintenance reduction. Technicians can rely on this Siemens combustion actuator for seamless electronic fuel-air ratio control and integration with LMV burner controllers.
Key Benefits- Precise Modulation: Advanced stepper motor technology allows for fine-tuned angular adjustment up to 90°.
- Simplified Wiring: Integration via CAN bus reduces field wiring complexity and supports digital electronic ratio control.
- Robust Design: Features an impact-proof housing cover and heavy-duty spur gears for longevity in high-demand combustion cycles.
- System Compatibility: Fully optimized for use with Siemens LMV5 systems and VKF41 butterfly valves (with ASK33.4 kit).
What is the primary application for the SQM45.295B9?
This actuator is specifically designed for medium to large capacity burners, controlling combustion air, gas flow, or oil volume in linkageless system configurations.
Can I use this actuator with an LMV27/37 burner control?
No, the SQM45.295B9 uses CAN bus communication and is specifically intended for the LMV5 series. For LMV3 systems, different actuator models are required.
Does this unit support manual positioning?
Control and feedback occur exclusively via the CAN bus system through the basic LMV5 unit or AZL5 display; manual adjustment is not standard to maintain precise calibration.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
