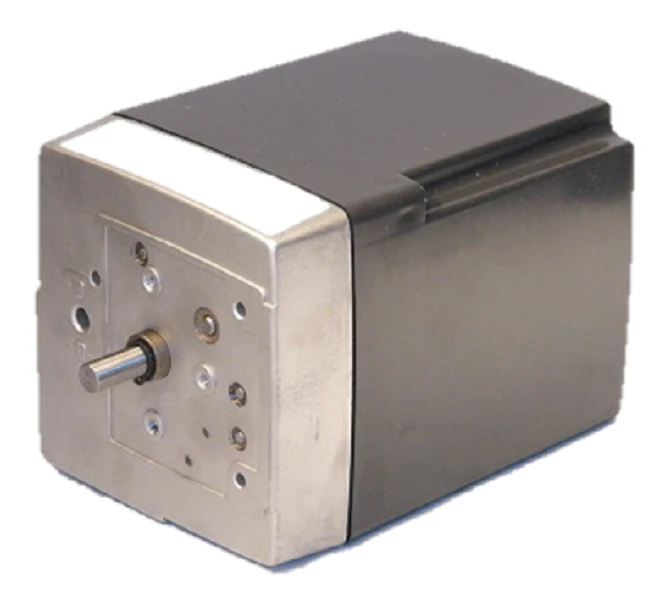

Siemens Combustion SQM10.16561 Motor
The Siemens SQM10.16561 is a high-precision reversing actuator designed specifically for the modulation of gas and air dampers in burner control systems. Operating on 110V AC, this damper motor provides a rated torque of 10 Nm with a total running time of 29 seconds for a 90-degree stroke. Engineered for compatibility with Siemens LFL and LME burner controls, it utilizes a synchronous motor and a gear train that can be disengaged for manual adjustments during commissioning. The counter-clockwise (CCW) rotation and internal auxiliary switches ensure accurate positioning and feedback for industrial combustion applications. With a power consumption of 9VA, this unit is built for continuous duty in demanding environments where precise air-to-fuel ratio control is critical for combustion efficiency.
Technical Features and Benefits
- The synchro motor design prevents stalls and ensures consistent timing across varying loads.
- Internal limit switches and position indicators allow for simplified field calibration.
- Robust die-cast housing provides durability for HVAC burner maintenance and industrial boiler rooms.
- Compatible with Siemens burner controls for seamless integration into existing combustion management systems.
- Manual declutching mechanism enables technicians to set damper positions easily during combustion system troubleshooting.
Frequently Asked Questions
What is the primary application for the SQM10.16561?
This actuator is primarily used to drive air or gas dampers on large burners to maintain the correct combustion profile.
Can the direction of rotation be changed in the field?
No, this specific model is a dedicated CCW unit. For clockwise requirements, a different part number must be specified.
How does this motor handle power loss?
The SQM10 series maintains its position upon loss of power unless the manual release is engaged.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $4,555.57
-65%$4,555.57
$1,594.45Siemens Combustion SQM10.16561 Motor
