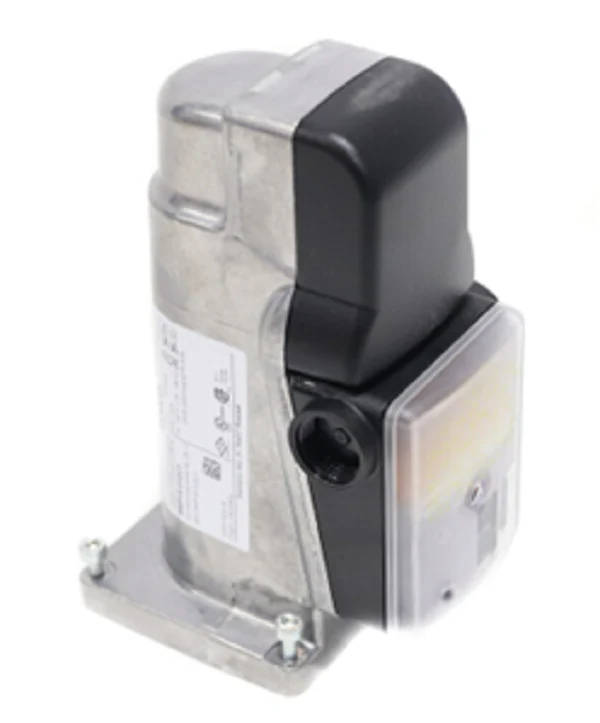

Siemens Combustion SKP15.012U1 Actuator
The Siemens SKP15.012U1 is a 120V electro-hydraulic actuator specifically engineered for single-stage safety shut-off control in industrial and commercial burner applications. This gas valve actuator is designed to mount directly onto Siemens VG series valve bodies, providing a reliable safety shut-off function that opens slowly and closes in less than 0.8 seconds upon power interruption. The SKP15.012U1 model comes equipped with an integrated Proof of Closure (POC) switch to verify the fully closed position and an adjustable auxiliary switch for secondary control loops. Its modular design allows for 360-degree rotation, simplifying terminal box orientation during field installation. With a low 13.5 VA power consumption and NEMA 1, 2, 5, and 12 enclosure ratings, this unit ensures high-performance 120V combustion control in demanding environments. Technicians appreciate the visible stroke position indicator and the quick-connect wiring terminals that streamline troubleshooting and replacement on 1/2-inch to 6-inch valve bodies.
Key Benefits- Enhanced Safety Monitoring: Integrated Proof of Closure (POC) switch ensures the valve is fully seated before the burner sequence continues.
- Flexible Control Options: Features an adjustable auxiliary switch (SPDT) allowing for custom signaling between 40% and 100% of the stroke.
- Rapid Fail-Safe Response: Immediate hydraulic relief system forces the valve closed in under one second to prevent hazardous gas flow.
- Streamlined Installation: Modular 360-degree rotation facilitates easy wiring access in tight mechanical rooms or complex burner skids.
- Broad Compatibility: Efficiently operates with all Siemens VG series gas valves ranging from 1/2" to 6" sizes.
- What is the primary role of the POC switch on the SKP15.012U1? The Proof of Closure switch provides a dry contact signal only when the actuator has reached its fully closed over-travel position, meeting strict safety interlocking requirements for commercial boilers.
- Can the auxiliary switch be used for safety limits? No, the auxiliary switch is intended for non-safety signaling (like high-fire indication); only the POC switch is rated for safety-critical closed-position verification.
- How do I verify the current valve position during operation? This actuator includes a transparent terminal box cover which provides a clear view of the mechanical stroke indicator and the "power on" status light.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $840.09
-65%$840.09
$294.03Siemens Combustion SKP15.012U1 Actuator
The Siemens SKP15.012U1 is a 120V electro-hydraulic actuator specifically engineered for single-stage safety shut-off control in industrial and commercial burner applications. This gas valve actuator is designed to mount directly onto Siemens VG series valve bodies, providing a reliable safety shut-off function that opens slowly and closes in less than 0.8 seconds upon power interruption. The SKP15.012U1 model comes equipped with an integrated Proof of Closure (POC) switch to verify the fully closed position and an adjustable auxiliary switch for secondary control loops. Its modular design allows for 360-degree rotation, simplifying terminal box orientation during field installation. With a low 13.5 VA power consumption and NEMA 1, 2, 5, and 12 enclosure ratings, this unit ensures high-performance 120V combustion control in demanding environments. Technicians appreciate the visible stroke position indicator and the quick-connect wiring terminals that streamline troubleshooting and replacement on 1/2-inch to 6-inch valve bodies.
Key Benefits- Enhanced Safety Monitoring: Integrated Proof of Closure (POC) switch ensures the valve is fully seated before the burner sequence continues.
- Flexible Control Options: Features an adjustable auxiliary switch (SPDT) allowing for custom signaling between 40% and 100% of the stroke.
- Rapid Fail-Safe Response: Immediate hydraulic relief system forces the valve closed in under one second to prevent hazardous gas flow.
- Streamlined Installation: Modular 360-degree rotation facilitates easy wiring access in tight mechanical rooms or complex burner skids.
- Broad Compatibility: Efficiently operates with all Siemens VG series gas valves ranging from 1/2" to 6" sizes.
- What is the primary role of the POC switch on the SKP15.012U1? The Proof of Closure switch provides a dry contact signal only when the actuator has reached its fully closed over-travel position, meeting strict safety interlocking requirements for commercial boilers.
- Can the auxiliary switch be used for safety limits? No, the auxiliary switch is intended for non-safety signaling (like high-fire indication); only the POC switch is rated for safety-critical closed-position verification.
- How do I verify the current valve position during operation? This actuator includes a transparent terminal box cover which provides a clear view of the mechanical stroke indicator and the "power on" status light.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
