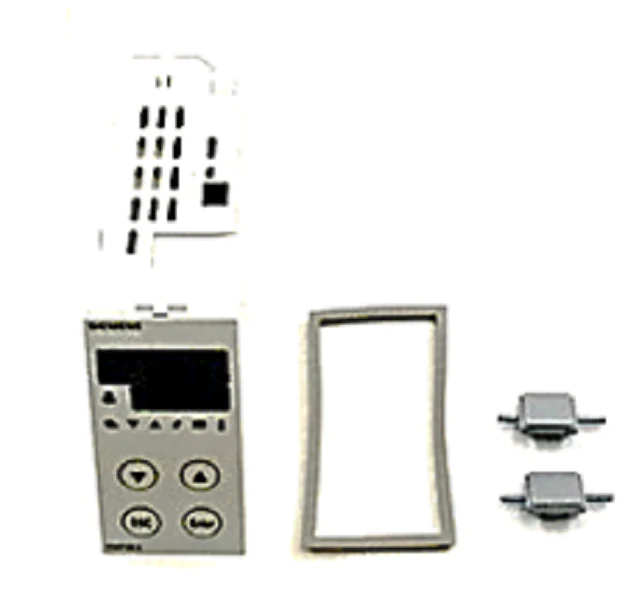

Siemens Combustion RWF55.50A9 Controller
The Siemens Combustion RWF55.50A9 Controller is a high-performance, 3-position analog controller engineered for precise temperature and pressure regulation in multi-stage or modulating burners. This compact universal controller features a built-in RS-485 Modbus interface, allowing for seamless integration into complex combustion management systems or master lead-lag panels. Designed with a 96x48mm standard DIN profile, it provides a dual 4-digit LCD display for clear monitoring of setpoints and actual process values. The unit supports various inputs, including Pt100 RTDs and thermocouples, making it a versatile choice for oil- or gas-fired heating plants. With specialized functions like thermal shock protection, outdoor air reset, and setpoint shifting, it optimizes burner efficiency while protecting industrial boiler shells. The RWF55.50A9 can operate as a 3-position relay controller or as a continuous controller with an analog output (0-10V or 4-20mA), providing the flexibility needed for demanding HVACR industrial control applications.
Key Benefits:- Precise Modulation: Facilitates smooth control of modulating burners via 3-position outputs or configurable analog signals.
- Advanced Communication: Features integrated Modbus RTU via RS-485 for remote monitoring and master-slave configurations.
- Equipment Safety: Includes thermal shock protection (cold start/low fire hold) to prevent rapid temperature changes in boiler systems.
- Environmental Adaptation: Supports outdoor air reset and limit comparator functions to adjust setpoints based on external ambient conditions.
- Reliable Construction: Offers IP66 front protection and a robust housing rated for ambient operations between -20°C and +50°C.
How do I change the Siemens RWF55.50A9 from heating to cooling mode?
The operating mode can be modified within the configuration menu by adjusting the control action parameter to reverse operation, allowing the controller to manage industrial cooling applications.
What does a '9999' reading on the display indicate?
This typically signals an out-of-range error or a sensor break. Technicians should verify the integrity of the RTD or thermocouple wiring and check input configuration settings.
Can the RWF55.50A9 control a 2-stage burner?
Yes, by using an external switch or specific parameter settings, the unit can be converted for use as a 2-position controller to manage burner ignition and staging sequences.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
