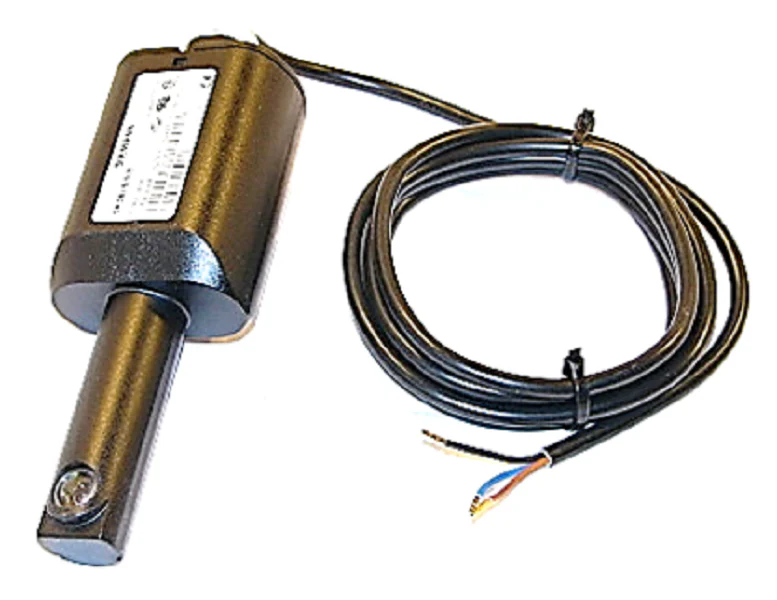

Siemens Combustion QRI2B2.B180B Flame Detector
As a seasoned technician, you know that the Siemens QRI2B2.B180B Flame Detector is a critical component for high-demand industrial burner applications. This infrared flame detector is engineered for side viewing (lateral illumination), making it the go-to solution for specific burner geometries where a frontal line-of-sight is obstructed. Designed to integrate seamlessly with Siemens LMV5 burner controls, this sensor excels in both continuous and intermittent operation modes. Its infrared-sensitive photoresistor is tuned for a maximum spectral sensitivity of approximately 2 ?m, allowing it to reliably supervise gas, oil, and coal flames by detecting the specific infrared radiation they emit. The integrated flame signal amplifier ensures the signal remains robust across the 180 cm pre-connected cable, which comes finished with stripped ends and ferrules for a clean termination in the control cabinet. Encased in an impact-proof, dust-tight black plastic housing rated at IP54 protection, the QRI2B2.B180B maintains high signal sensitivity even when mounted behind a burner baffle plate, ensuring your flame supervision remains accurate under harsh boiler room conditions.
- Optimized for Side Entry: Specifically designed for lateral illumination at a 90-degree angle to accommodate complex burner mounting requirements.
- Universal Combustion Compatibility: Reliable infrared radiation detection for gas, oil, and coal-fired systems of any capacity.
- Continuous Duty Approved: Features electronic self-supervision, allowing for use in high-demand, non-stop burner operations.
- Rugged Industrial Build: Built with an impact-proof housing and an IP54 rating to withstand temperature fluctuations from -20°C to +60°C.
- Precision Signal Transmission: Integrated amplifier delivers a stable DC 0 to 5 V signal voltage to the burner management system.
Common Questions
Can the QRI2B2.B180B be used for continuous burner operation?
Yes, this model is designed with electronic self-supervision, making it fully compliant for use in systems that run 24/7 or for extended periods without a shutdown cycle.
What is the primary advantage of the side-viewing configuration?
The lateral viewing window is essential for burners where the optical path requires a 90-degree orientation relative to the sensor body, often seen when mounting behind baffle plates or in tight mechanical assemblies.
Is this detector compatible with LMV series burner controls?
This infrared sensor is specifically intended for use with Siemens LMV5 burner controls and similar high-specification Siemens combustion management systems.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Siemens Combustion QRI2B2.B180B Flame Detector
As a seasoned technician, you know that the Siemens QRI2B2.B180B Flame Detector is a critical component for high-demand industrial burner applications. This infrared flame detector is engineered for side viewing (lateral illumination), making it the go-to solution for specific burner geometries where a frontal line-of-sight is obstructed. Designed to integrate seamlessly with Siemens LMV5 burner controls, this sensor excels in both continuous and intermittent operation modes. Its infrared-sensitive photoresistor is tuned for a maximum spectral sensitivity of approximately 2 ?m, allowing it to reliably supervise gas, oil, and coal flames by detecting the specific infrared radiation they emit. The integrated flame signal amplifier ensures the signal remains robust across the 180 cm pre-connected cable, which comes finished with stripped ends and ferrules for a clean termination in the control cabinet. Encased in an impact-proof, dust-tight black plastic housing rated at IP54 protection, the QRI2B2.B180B maintains high signal sensitivity even when mounted behind a burner baffle plate, ensuring your flame supervision remains accurate under harsh boiler room conditions.
- Optimized for Side Entry: Specifically designed for lateral illumination at a 90-degree angle to accommodate complex burner mounting requirements.
- Universal Combustion Compatibility: Reliable infrared radiation detection for gas, oil, and coal-fired systems of any capacity.
- Continuous Duty Approved: Features electronic self-supervision, allowing for use in high-demand, non-stop burner operations.
- Rugged Industrial Build: Built with an impact-proof housing and an IP54 rating to withstand temperature fluctuations from -20°C to +60°C.
- Precision Signal Transmission: Integrated amplifier delivers a stable DC 0 to 5 V signal voltage to the burner management system.
Common Questions
Can the QRI2B2.B180B be used for continuous burner operation?
Yes, this model is designed with electronic self-supervision, making it fully compliant for use in systems that run 24/7 or for extended periods without a shutdown cycle.
What is the primary advantage of the side-viewing configuration?
The lateral viewing window is essential for burners where the optical path requires a 90-degree orientation relative to the sensor body, often seen when mounting behind baffle plates or in tight mechanical assemblies.
Is this detector compatible with LMV series burner controls?
This infrared sensor is specifically intended for use with Siemens LMV5 burner controls and similar high-specification Siemens combustion management systems.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
