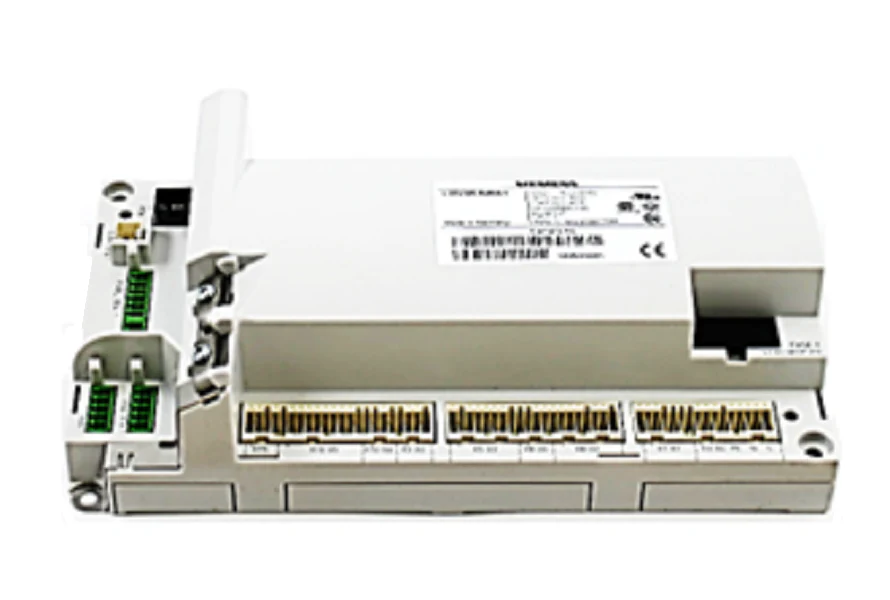

Siemens Combustion LMV36.520A1 Control
The Siemens Combustion LMV36.520A1 Control is a technician-grade burner management system designed specifically for forced draft burners in industrial and commercial sectors. This 120V dual fuel burner controller provides integrated electronic fuel-air ratio control, managing up to two SQM3 or SQN1 actuators simultaneously for precise combustion efficiency. Engineered for both gas and oil applications, the LMV36.520A1 features built-in gas valve proving and variable speed drive (VSD) fan control, eliminating the mechanical hysteresis common in traditional linkage systems. This microprocessor-based controller ensures reliable intermittent operation and can be expanded for dual-fuel switching with the addition of an AGM60 unit. By leveraging a high-accuracy contact feedback network, it monitors all safety-related digital inputs and outputs, providing contractors with a robust solution for medium to high-capacity burner applications requiring high-repeatability and strict adherence to safety standards.
Key Benefits- Digital Accuracy: Replaces mechanical linkages with electronic fuel-air ratio control for tighter setpoints and reduced fuel consumption.
- Dual Fuel Versatility: Supports seamless transition between gas and light oil fuels when paired with the proper switching modules.
- Safety Integration: Features an integrated valve proving system (VPS) and continuous monitoring of flame signal intensity for maximum site safety.
- System Flexibility: Compatible with Modbus interface protocols for remote monitoring and integration into building management systems.
- VSD Fan Control: Includes dedicated logic for variable speed drive air fan management to optimize airflow throughout the firing curve.
Is an external display required for the Siemens LMV36.520A1?
Yes, this basic unit does not have integrated operating elements. Commissioning and parameter adjustments require a detached unit like the AZL23.00A9 display or the ACS410 PC software.
How many actuators can this controller manage?
The LMV36.520A1 is designed to control up to two fuel or air SQM3 or SQN1 actuators, providing accurate positioning for the burner's fuel and air components.
Can this unit be used for continuous burner operation?
For intermittent operation, it supports QRA flame detectors or ionization probes. However, continuous operation is only supported when utilizing an ionization probe without an AGM60 module.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
