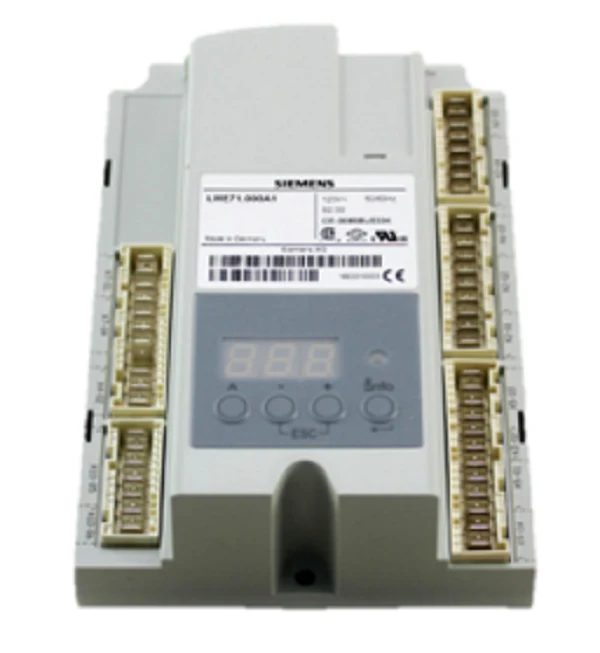

Siemens Combustion LME71.000A1 Burner Control
The Siemens LME71.000A1 Burner Control is a microprocessor-based combustion management system engineered specifically for the intermittent operation of single-stage or multistage gas or oil burners. Operating at AC 120V, this basic unit serves as the logic core for industrial combustion setups, requiring a PME71 program module to define specific functional sequences. This modularity allows technicians to customize flame supervision and parameterization via the PC tool or display terminal. The hardware supports ionisation probes or UV flame detectors (such as the QRA series) to ensure site-specific safety and flame monitoring. Designed for integration into forced draft burners, the LME71.000A1 provides precise control over actuator positioning and timing cycles, ensuring reliable restarts after controlled shutdowns. Its DIN-rail mounting compatibility and compact German engineering make it a standard choice for contractors upgrading industrial burner controls while maintaining strict compliance with RoHS standards.
Key Benefits for Technicians
- Modular Flexibility: Designed for use with PME71 program modules, allowing the unit to adapt to various burner types and sequence requirements without replacing the base controller.
- Advanced Diagnostics: Features an integrated interface for AZL2x display units or PC software, enabling rapid troubleshooting and fine-tuning of burner parameters.
- Multi-Fuel Capability: Supports reliable flame supervision for both gas and oil applications using diverse detector types, including QRB and QRA sensors.
- Precise Timing Cycles: Ensures accurate pre-purge and safety times, critical for maintaining system safety in high-demand industrial environments.
- Compact Integration: The lightweight 0.850 kg chassis is built for straightforward housing in control cabinets, minimizing footprint.
Common Questions About LME71.000A1
Which program module is required for the LME71.000A1?
This burner control unit must be paired with Siemens PME71 series modules. The specific module determines the functional sequence, timing, and whether the system operates as a single-stage or modulating burner.
Can the LME71.000A1 be used for continuous operation?
No, this unit is rated for intermittent operation, meaning the burner must have at least one controlled shutdown every 24 hours to verify safety functions and flame detection circuitry.
What flame detectors are compatible with this controller?
The unit supports ionisation probes or UV flame detectors. When using UV sensors like the Siemens QRA2 or QRA10, ensure the wiring and voltage requirements align with the AC 120V specification of the base unit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Siemens Combustion LME71.000A1 Burner Control
The Siemens LME71.000A1 Burner Control is a microprocessor-based combustion management system engineered specifically for the intermittent operation of single-stage or multistage gas or oil burners. Operating at AC 120V, this basic unit serves as the logic core for industrial combustion setups, requiring a PME71 program module to define specific functional sequences. This modularity allows technicians to customize flame supervision and parameterization via the PC tool or display terminal. The hardware supports ionisation probes or UV flame detectors (such as the QRA series) to ensure site-specific safety and flame monitoring. Designed for integration into forced draft burners, the LME71.000A1 provides precise control over actuator positioning and timing cycles, ensuring reliable restarts after controlled shutdowns. Its DIN-rail mounting compatibility and compact German engineering make it a standard choice for contractors upgrading industrial burner controls while maintaining strict compliance with RoHS standards.
Key Benefits for Technicians
- Modular Flexibility: Designed for use with PME71 program modules, allowing the unit to adapt to various burner types and sequence requirements without replacing the base controller.
- Advanced Diagnostics: Features an integrated interface for AZL2x display units or PC software, enabling rapid troubleshooting and fine-tuning of burner parameters.
- Multi-Fuel Capability: Supports reliable flame supervision for both gas and oil applications using diverse detector types, including QRB and QRA sensors.
- Precise Timing Cycles: Ensures accurate pre-purge and safety times, critical for maintaining system safety in high-demand industrial environments.
- Compact Integration: The lightweight 0.850 kg chassis is built for straightforward housing in control cabinets, minimizing footprint.
Common Questions About LME71.000A1
Which program module is required for the LME71.000A1?
This burner control unit must be paired with Siemens PME71 series modules. The specific module determines the functional sequence, timing, and whether the system operates as a single-stage or modulating burner.
Can the LME71.000A1 be used for continuous operation?
No, this unit is rated for intermittent operation, meaning the burner must have at least one controlled shutdown every 24 hours to verify safety functions and flame detection circuitry.
What flame detectors are compatible with this controller?
The unit supports ionisation probes or UV flame detectors. When using UV sensors like the Siemens QRA2 or QRA10, ensure the wiring and voltage requirements align with the AC 120V specification of the base unit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
