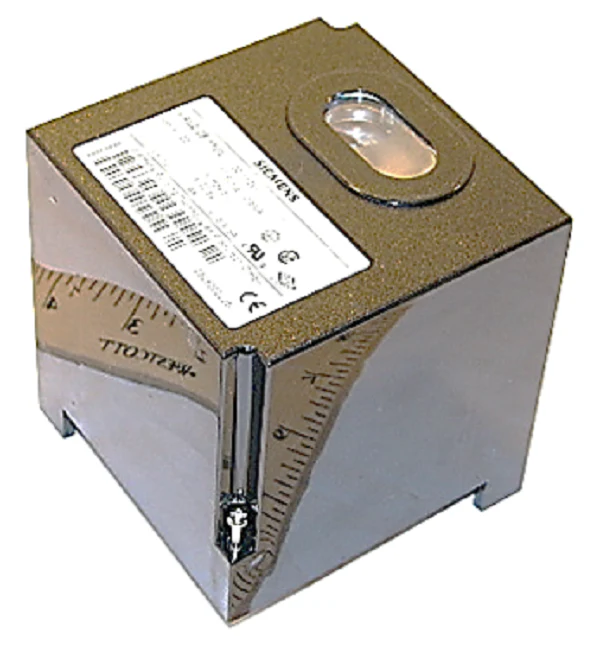

Siemens Combustion LAL2.25-110V Control
The Siemens Combustion LAL2.25-110V Control is a specialized oil burner controller engineered for the supervision and sequencing of oil atomizing burners of medium to high capacity. This unit is specifically designed for 110V AC systems and is capable of managing multistage or modulating burners in intermittent operation. It provides mandatory air pressure supervision to ensure 100% verified air damper control, a critical safety protocol for industrial burner environments. Operating at localized voltages, this mechanical control unit integrates flame supervision via QRB1 photoresistive or RAR selenium photocell detectors.
Built for durability in mechanical rooms, the LAL2.25-110V features an impact-proof and heat-resistant housing with a plug-in design for efficient field replacement. The sequence includes a 22.5-second pre-purge time (t1) and a 5-second ignition safety time (TSA), essential for managing flash steam generators and yellow-flame burners. For technicians troubleshooting in the field, the lockout reset button features a built-in warning lamp and failure code symbols to reduce diagnostic downtime.
Key Benefits:- Universal Application: Supports yellow-flame, multistage, or modulating burner systems requiring air pressure monitoring.
- Integrated Safety: Features built-in air pressure supervision for checked air damper control during the startup and operation phases.
- Technical Reliability: Engineered for intermittent operation with at least one controlled shutdown every 24 hours to ensure cycle safety.
- Modular Design: The plug-in base architecture allows for rapid swap-outs without disturbing the underlying wiring.
- Flame Detection Versatility: Compatible with standard QRB1 and RAR series flame sensors for consistent supervision.
- What is the primary difference between LAL1 and LAL2 series? While both supervise oil burners, the LAL2 series, including this 110V model, adds mandatory air pressure supervision for yellow-flame burners.
- Can I use this control for continuous operation? No, this unit is designed for intermittent operation. For continuous burner applications, you must use the LOK16 series.
- How does the unit handle flame failure during operation? When the internal wire link 'B' is intact, the controller initiates an immediate lockout if a flame loss occurs during the run cycle.
