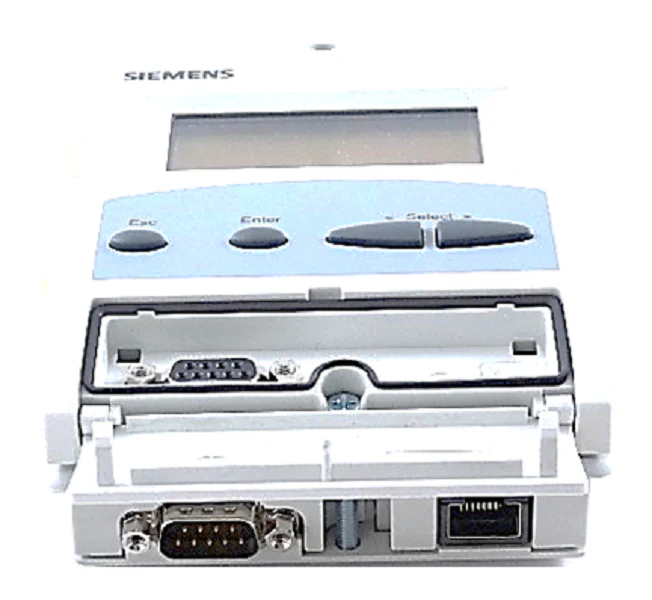

Siemens Combustion AZL52.40B1 Programming Display
The Siemens Combustion AZL52.40B1 is a robust programming display and operator unit engineered specifically for the LMV5 burner management system. As a critical interface for linkageless burner control, this unit facilitates precise combustion system diagnostics, commissioning, and real-time monitoring of industrial and commercial burners. This specific North American (US) variant features a 4MBit internal memory and a high-visibility backlit LCD that provides clear-text messaging in multiple languages, including English, Spanish, and French, to streamline complex parameter adjustments on the shop floor.
Equipped with an integrated Modbus communication interface via an RJ45 jack, the AZL52.40B1 allows for seamless integration with Building Automation and Control Systems (BACS) for remote data acquisition. It connects to the LMV5 base unit using the CANbus protocol through a standard 9-pin connector, ensuring reliable high-speed data transfer. The menu-driven architecture provides technicians with targeted access to boiler fault code history, burner firing rates, and electronic fuel-air ratio settings, making it an indispensable tool for maintaining peak thermal efficiency and operational safety.
Key Benefits
- System Compatibility: Explicitly designed for Siemens LMV51 and LMV52 linkageless burner controls.
- Advanced Integration: Built-in Modbus RTU port enables straightforward BMS/SCADA connectivity for remote troubleshooting.
- Critical Data Recovery: Internal 4MBit memory supports the backup and restoration of burner parameter sets during component replacement.
- Enhanced Visibility: Backlit clear-text display ensures readable diagnostics in dimly lit boiler room environments.
- Secure Calibration: Multiple password-protected access levels prevent unauthorized modifications to critical safety settings.
Common Questions
Is the AZL52.40B1 required for burner operation?
Yes, the AZL display unit is required for the initial commissioning and ongoing operation of the LMV5 base unit, as it serves as the primary human-machine interface for the burner management system.
What cable is needed to connect this display to the LMV5?
Technicians typically utilize the AGG5.635 CANbus cable to establish communication between the base unit and the detached AZL52.40B1 panel-mounted display.
Can I use one display to monitor multiple burners?
While one unit is required per burner for dedicated operation, advanced configurations involving an HMI touch screen can interface with multiple AZL52 units via the Modbus protocol for centralized monitoring.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
