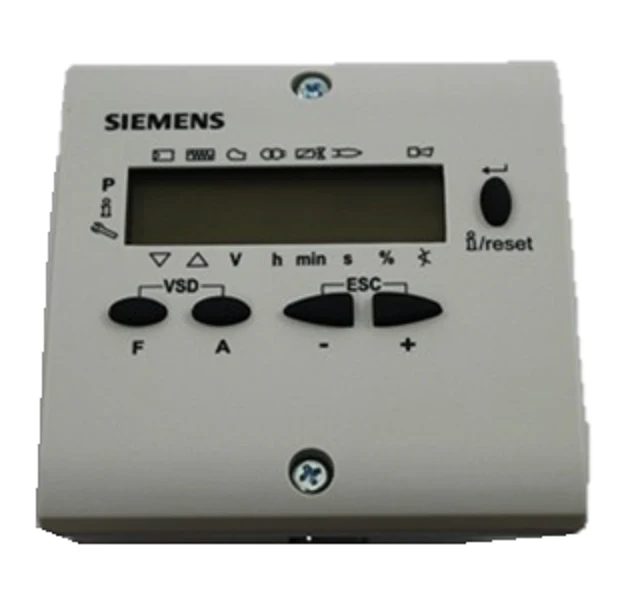

Siemens Combustion AZL23.00A9 Programming Display
The Siemens AZL23.00A9 is a specialized programming display module designed for commissioning and monitoring Siemens LME7 flame safeguards. Built for industrial and commercial combustion applications, this unit provides a direct interface with the LME7 burner control, allowing for real-time parameterization and diagnostics. Technicians utilize the AZL23 display unit to access password-protected levels for adjusting fuel-to-air ratios, pre-purge timings, and ignition sequences. Its backlit LCD interface ensures visibility in mechanical rooms, delivering clear error codes and operating states to minimize downtime. As a critical HVAC burner control interface, it facilitates the precise setup of modulating or multi-stage burners. By integrating this combustion controller display, contractors can ensure optimal atmospheric or forced draft burner performance, ensuring the LME7 burner control system operates within specific safety limits. The durable construction and plug-and-play connectivity make it a standard tool for Siemens burner management field service.
Key Technical Benefits
- Real-Time Diagnostics: Instantly view phase sequences and fault codes to streamline troubleshooting on the job site.
- Parameter Memory: Facilitates the safe modification and storage of burner-specific setpoints within the Siemens LME7 logic.
- High-Contrast Interface: The backlit digital programming unit provides clear data readouts in low-light industrial environments.
- Seamless Integration: Designed for local mounting or handheld operation, connecting directly to the burner control via a dedicated communication cable.
Common Questions
Can the AZL23.00A9 be used with LMV series controls?
No, this specific model is engineered exclusively for the Siemens LME7 burner control platform. LMV systems typically require the AZL21 or AZL5 series displays.
What is the primary function of the display during burner lockout?
It provides the exact error code and diagnostic information, allowing the technician to identify if the failure occurred during the standby, startup, or run phase.
Does this unit allow for remote parameter adjustment?
The AZL23.00A9 is a local interface tool. While it displays system status, remote communication would require additional OCI interface modules and software.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
