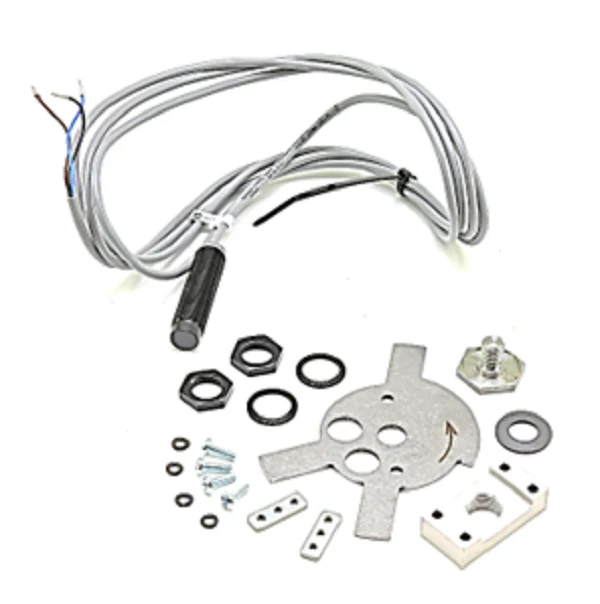

Siemens Combustion AGG5.310 Sensor/Mounting Kit
The Siemens AGG5.310 is a specialized rotational sensor and mounting kit engineered specifically for LMV52 Linkageless Burner Management Systems utilizing VFD control. When commissioning a Variable Frequency Drive (VFD) for combustion air fans, precise shaft speed feedback is critical to ensure the burner maintains its programmed fuel-to-air ratio. This kit provides the necessary hardware to monitor motor RPM effectively, maintaining the integrity of the electronic cam control. The AGG5.310 sensor functions as a safety and performance feedback loop, allowing the LMV52 check the actual blower speed against the setpoint. This ensures the system stays within its safety limits during operation. Designed for high-duty industrial environments, this Siemens burner control accessory eliminates common feedback errors that can lead to nuisance lockouts. For technicians upgrading legacy burner setups to variable speed fan control, the AGG5.310 offers the reliability and technical compliance required for modern industrial combustion standards.
Key Benefits
- System Precision: Enables highly accurate RPM feedback for LMV52 VFD applications, ensuring the air-fuel ratio remains stable across the entire firing range.
- Direct Compatibility: Specifically designed to interface with Siemens LMV52 series burner management systems without the need for unauthorized signal converters.
- Safety Compliance: Facilitates the mandatory speed monitoring required when bypassing mechanical linkages in favor of VFD combustion air control.
- Full Installation Kit: Includes the rotational sensor and all necessary mounting hardware to ensure a secure, vibration-resistant attachment to the motor shaft.
Common Questions
Is the AGG5.310 compatible with LMV3 or LMV51 systems?
The AGG5.310 is specifically engineered for the LMV52 VFD variant. While other models in the LMV series manage burner functions, the LMV52 is the specific platform that utilizes this rotational sensor for variable frequency drive feedback.
What happens if the rotational sensor signal is lost?
The LMV52 system monitors the signal from the AGG5.310 sensor to verify fan speed. If the signal is interrupted or deviates from the safety parameters, the controller will initiate a safety shutdown to prevent a fuel-rich combustion condition.
Does this kit include the cable for the sensor?
This kit focuses on the sensor and the mechanical mounting hardware necessary to secure it to the fan motor assembly. Always verify your specific wiring requirements against the Siemens LMV52 technical documentation during the submittal process.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
