Siemens Combustion AGG2.110 Adapter
The Siemens Combustion AGG2.110 Adapter is a critical mounting component engineered specifically for the QRI2A2 infrared flame detector and QRA series sensors in industrial burner applications. This 3/4 inch NPT adapter facilitates precise frontal illumination, ensuring the flame scanner maintains an unobstructed line of sight to the burner flame. Designed for high-performance combustion environments, the assembly includes an integrated heat insulator (adapter nipple) with a 3/4" 14-NPSM / NPT thread to protect sensitive electronic elements from thermal stress, supporting a maximum temperature rating at the connection of +248°F (+120°C).

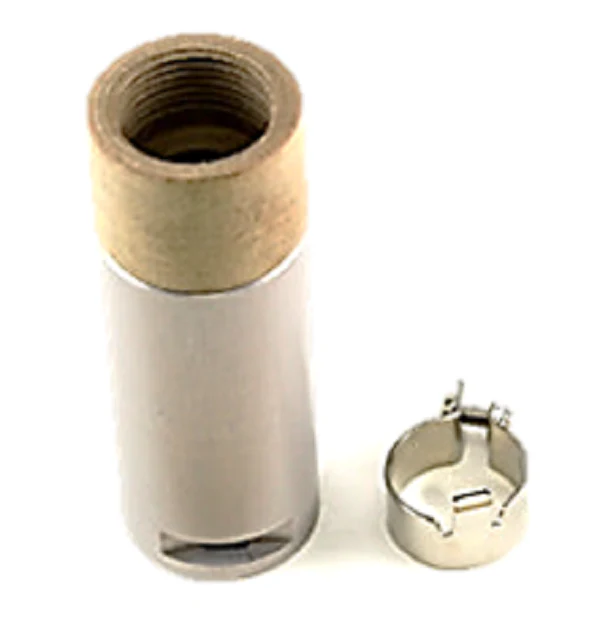

For technicians retrofitting or maintaining Siemens flame safeguard systems, this mounting set provides a robust mechanical interface. The AGG2.110 mounting kit consists of the adapter nipple, an adapter sleeve, and a securing clamp, ensuring a vibration-resistant fit on boiler sight tubes or burner plates. It incorporates a protective glass lens that shields the infrared flame scanner from combustion byproducts and debris without compromising signal integrity. This part is essential for maintaining burner flame detection reliability in steam generators, thermal process plants, and high-capacity boiler systems utilizing the LMV5 burner management platform.
Key Benefits:- Ensures accurate optical flame supervision by providing fixed, stable frontal illumination mounting for QRI and QRA detectors.
- Features a durable 3/4 inch NPT threaded connection compatible with standard industrial sight ports and burner housing threads.
- Includes a built-in heat insulator to prevent thermal damage to the detector, rated for connection temperatures up to 120 degrees Celsius.
- Equipped with a protective glass cover and sealing gaskets to maintain a secure seal against combustion chamber pressure and contaminants.
- Complete mounting set simplifies field installation, containing the necessary sleeve, nipple, and clamp for immediate replacement.
- How do I ensure the best signal when installing this adapter? Ensure the internal glass disk is clean and the 3/4 inch NPT adapter is aligned to provide the QRI2A2 scanner a direct view of the flame's primary combustion zone.
- Is this compatible with ultraviolet (UV) detectors? While primary for infrared QRI series, it also supports specifically listed QRA series Siemens flame sensors that utilize frontal viewing. Always verify your detector's specific mounting requirements.
- Does the mounting kit include the securing clamp? Yes, the AGG2.110 mounting set is provided as a complete kit, including the adapter nipple, sleeve, and the required clamp to lock the detector in place.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
