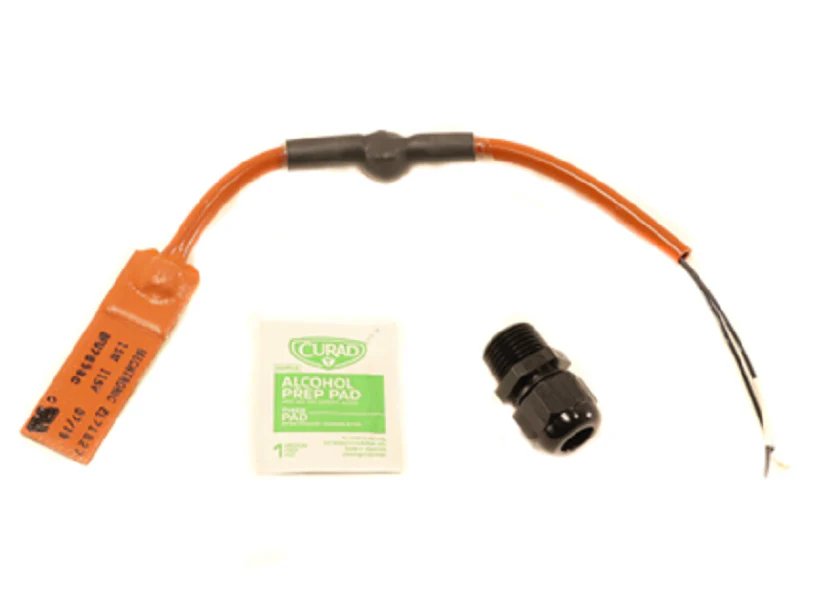

Siemens Combustion AGA63-MRHT Heater
The Siemens AGA63-MRHT heater kit is a critical field-installed component engineered to maintain optimal operational temperatures for SKP series electro-hydraulic actuators. In low-ambient conditions, the internal rubber diaphragms of actuators like the SKP25, SKP55, and SKP75 can become rigid, leading to sluggish response times and inaccurate pressure regulation. Integrating this 15-watt heating element provides a steady 30°F temperature rise, ensuring reliable gas valve modulation even when temperatures drop to -20°F. Unlike standard configurations, this kit includes a specialized heating pad and a built-in automatic thermostat that cycles the heater on at 25°F and off at 50°F.
For high-performance combustion setups, technical experts recommend using this Siemens AGA63-MRHT in conjunction with the AGA66 sealing gasket to achieve NEMA 3, 3R, and 4 protection ratings. Installation involves surface mounting the adhesive-backed heater directly to the actuator housing. To ensure combustion system reliability and avoid condensation, the heater must be wired to a continuous 115-VAC power source that remains active even when the valve is in the closed position. This prevents cold-start issues and technical deviations in gas pressure control during extreme weather events.
Key Benefits for Technicians- Prevents condensation and internal moisture buildup within the actuator housing to protect electrical components.
- Ensures accurate modulation by maintaining diaphragm flexibility in temperatures as low as -20°F.
- Automated thermal control via an integrated thermostat (25°F ON / 50°F OFF) reduces manual oversight.
- Simplified field installation with high-tack adhesive backing and a dedicated 115-VAC terminal connector.
- Universal compatibility across the Siemens SKPx5... series, including SKP15, SKP25, SKP55, and SKP75 actuators.
Is the AGA63-MRHT compatible with 230V systems?
No, this specific model is designed for 115-VAC applications. Operating at higher voltages will damage the heating element and void technical compliance.
Should the heater be wired to the actor's terminal L?
No. To maintain constant temperature regulation, the heater should be wired to a fused, unswitched source so it remains energized when the main valve is off.
Does this kit include the thermostat?
Yes, the AGA63-MRHT is the version that includes the integrated thermostat. If your application calls for a heater without a thermostat, verify the model number as "SKP Heater Less Thermostat" units are distinct components.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
