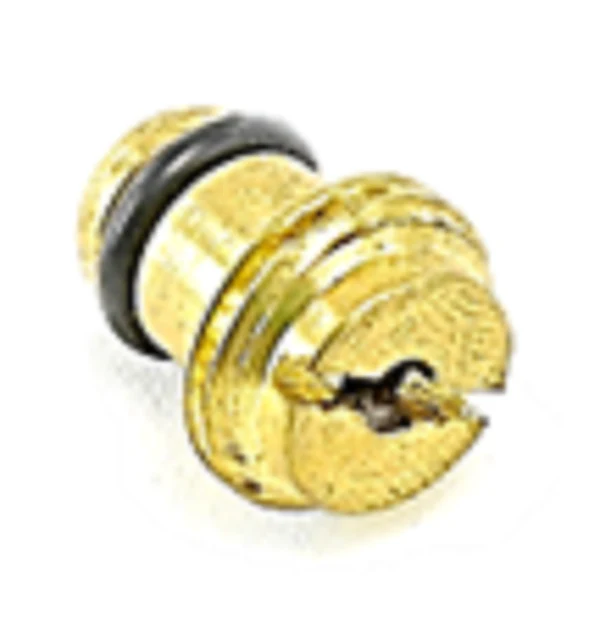

Siemens Combustion AGA25.2 Damping Orifice
The Siemens Combustion AGA25.2 Damping Orifice is a precision-engineered throttle component designed specifically for integration with Siemens SKP25 series gas actuators. As a veteran-grade solution for stabilizing combustion control systems, this damping orifice is required for applications where inlet pressure (Pe) exceeds 2 kPa. It functions by regulating the vent connection, effectively minimizing pressure oscillations and preventing hunting within the fuel-air ratio control loop. This creates a stable gas-air ratio control environment, ensuring consistent burner performance across varying loads. Built from durable, high-grade alloys, the AGA25.2 is a critical vent limiter damping orifice for natural gas systems up to 5 PSI and propane/butane setups up to 1.5 PSI. Its compact design allows for direct mounting into the vent connection of SKP25.0xxUx or SKP25.4xxUx models, providing technicians with a reliable method to fine-tune fluid dynamics and improve overall system stability. By suppressing rapid pressure fluctuations, this part helps maintain the setpoint integrity of the gas pressure governor, which is essential for high-fire and low-fire load accuracy in industrial boilers and power generation plants.
Key Benefits
- Ensures stable operation of Siemens SKP actuators by significantly reducing pressure oscillations in the vent line.
- Facilitates precise combustion efficiency optimization by preventing control valve hunting during rapid load changes.
- Specifically calibrated for SKP25 gas valves, supporting inlet pressures up to 5 PSI for natural gas.
- Constructed from corrosion-resistant materials to withstand harsh industrial combustion environments.
- Simplified HVACR technical installation via direct integration into the actuator's vent connection.
Common Questions
When is an AGA25.2 damping orifice required for an SKP25 actuator?
According to Siemens technical specifications, the AGA25.2 must be installed if the inlet pressure exceeds 2 kPa (approx. 8 inches W.C.) to ensure the gas pressure governor maintains a stable setpoint without oscillation.
What is the difference between the AGA25.2 and AGA25.3 models?
The AGA25.2 is designed for natural gas applications up to 5 PSI, whereas the AGA25.3 is intended for higher pressure ranges (5-20 PSI) or specific propane/butane requirements. Always verify your system's inlet pressure before selection.
Can this damping orifice be used with SKP15 or SKP75 actuators?
The AGA25.2 is specifically engineered for the vent ports of SKP25 series actuators. While some Siemens components share threads, utilizing this orifice on non-specified models may negatively impact the actuator's closing time or pressure regulation capabilities.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
