Siemens Combustion AGA22 Spring

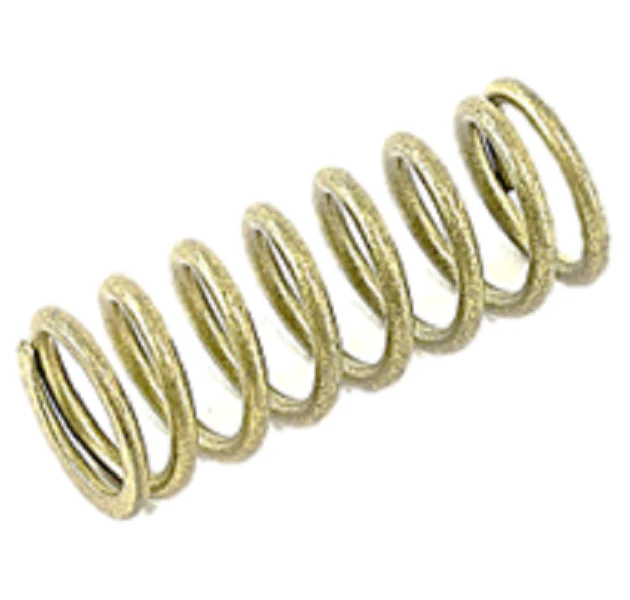

The Siemens AGA22 Setpoint Spring is a critical component for technicians calibrating SKP25 pressure regulating gas valve actuators. This yellow-coded spring is engineered to provide a specific outlet pressure regulator range of 6 to 48 inches water column (W.C.), or approximately 15 to 120 mbar. In high-pressure applications using the SKP25.411U1 actuator, the AGA22 spring can facilitate a range of 1.5 to 10 psi, ensuring precise fuel-air ratio control and stable combustion for industrial burners and commercial boilers. Its heavy-duty steel construction maintains consistent tension over time, preventing setpoint drift in HVAC combustion systems. When swapping out standard springs for the yellow setpoint spring, ensure the actuator remains properly sealed to maintain its electro-hydraulic performance. This internal component is essential for adapting Siemens combustion controls to specific pipeline dynamics and appliance requirements, providing the necessary mechanical force to counter gas diaphragm pressure.
Key Benefits:
- Provides a reliable 6-48" W.C. pressure range for precise manifold gas control.
- Specifically designed for seamless integration with Siemens SKP25 series actuators.
- Yellow color-coding allows for instant visual identification during field service and inspections.
- Ensures consistent outlet pressure regulation, reducing the risk of flame instability or nuisance shutdowns.
- Durable steel design resists fatigue in high-cycle commercial heating applications.
Common Questions:
What is the difference between the AGA22 and the standard AGA29 spring?
The AGA29 is the standard unpainted spring typically pre-installed for 0-8.5" W.C., whereas the AGA22 yellow spring is the required upgrade for higher 6-48" W.C. setpoints.
Can this spring be used with SKP15 or SKP75 actuators?
The Siemens AGA22 is primarily intended for the SKP25 pressure regulating actuator. While some physical dimensions may overlap, the pressure curves are calibrated specifically for the regulating diaphragm of the SKP25 series.
How do I adjust the pressure once the AGA22 is installed?
After installing the spring inside the SKP25, use the adjustment screw located under the actuator cover to compression-load the spring and reach your desired W.C. outlet pressure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $26.66
-65%$26.66
$9.33Siemens Combustion AGA22 Spring
The Siemens AGA22 Setpoint Spring is a critical component for technicians calibrating SKP25 pressure regulating gas valve actuators. This yellow-coded spring is engineered to provide a specific outlet pressure regulator range of 6 to 48 inches water column (W.C.), or approximately 15 to 120 mbar. In high-pressure applications using the SKP25.411U1 actuator, the AGA22 spring can facilitate a range of 1.5 to 10 psi, ensuring precise fuel-air ratio control and stable combustion for industrial burners and commercial boilers. Its heavy-duty steel construction maintains consistent tension over time, preventing setpoint drift in HVAC combustion systems. When swapping out standard springs for the yellow setpoint spring, ensure the actuator remains properly sealed to maintain its electro-hydraulic performance. This internal component is essential for adapting Siemens combustion controls to specific pipeline dynamics and appliance requirements, providing the necessary mechanical force to counter gas diaphragm pressure.
Key Benefits:
- Provides a reliable 6-48" W.C. pressure range for precise manifold gas control.
- Specifically designed for seamless integration with Siemens SKP25 series actuators.
- Yellow color-coding allows for instant visual identification during field service and inspections.
- Ensures consistent outlet pressure regulation, reducing the risk of flame instability or nuisance shutdowns.
- Durable steel design resists fatigue in high-cycle commercial heating applications.
Common Questions:
What is the difference between the AGA22 and the standard AGA29 spring?
The AGA29 is the standard unpainted spring typically pre-installed for 0-8.5" W.C., whereas the AGA22 yellow spring is the required upgrade for higher 6-48" W.C. setpoints.
Can this spring be used with SKP15 or SKP75 actuators?
The Siemens AGA22 is primarily intended for the SKP25 pressure regulating actuator. While some physical dimensions may overlap, the pressure curves are calibrated specifically for the regulating diaphragm of the SKP25 series.
How do I adjust the pressure once the AGA22 is installed?
After installing the spring inside the SKP25, use the adjustment screw located under the actuator cover to compression-load the spring and reach your desired W.C. outlet pressure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
