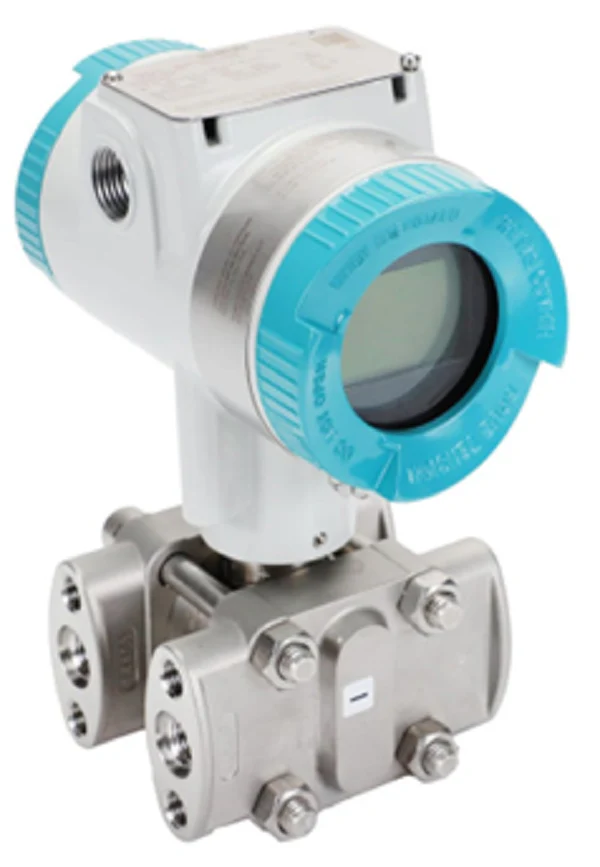

Siemens Combustion 7MF0340-DISP Transmitter
The Siemens Combustion 7MF0340-DISP is a heavy-duty SITRANS P320 differential pressure transmitter engineered for industrial HVAC and burner control systems. Featuring a versatile 0.4" to 100" WC measurement range and a standard 4-20mA output signal, this digital pressure transducer provides precise feedback for airflow monitoring, filter status, and combustion air synchronization. The integrated LCD display allows for immediate local diagnostics, while the dual-chamber die-cast aluminum housing ensures a NEMA 4X / IP66 rating for reliable performance in boiler rooms and mechanical spaces. Designed to interface seamlessly with Siemens RWF5x controllers, this HART-compatible transmitter utilizes a silicone oil-filled measuring cell to maintain signal stability and accuracy across varying commercial duct pressures.
Key Benefits:- Wide Operating Span: Adjustable sensing from 0.4" to 100" WC to accommodate diverse system requirements.
- Process Compatibility: Standard 4-20mA loop powered output provides universal integration with building automation systems (BAS).
- Local Interface: Built-in digital display and four-button navigation allow for field calibration and parameter adjustments without external tools.
- Rugged Construction: Stainless steel 316L diaphragms and a robust aluminum housing protect against corrosive process media and harsh environmental conditions.
- Advanced Control: Ideally suited for linkage-less burner control and precision level monitoring when paired with Siemens combustion managers.
- Can this unit be used for liquid level control? Yes, the 7MF0340 series is frequently utilized for hydrostatic level measurement in tanks and pressurized vessels.
- What is the enclosure rating? The device features a NEMA 4X and IP66 rated dual-chamber housing, making it suitable for wet or dusty industrial environments.
- Is it compatible with HART communication? Yes, as part of the SITRANS P320 family, it supports HART 7 protocol for remote configuration and diagnostics.
- Does it require a separate power supply? This is a loop-powered transmitter, typically drawing power from the 24V DC analog input of the controller.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Siemens Combustion 7MF0340-DISP Transmitter
The Siemens Combustion 7MF0340-DISP is a heavy-duty SITRANS P320 differential pressure transmitter engineered for industrial HVAC and burner control systems. Featuring a versatile 0.4" to 100" WC measurement range and a standard 4-20mA output signal, this digital pressure transducer provides precise feedback for airflow monitoring, filter status, and combustion air synchronization. The integrated LCD display allows for immediate local diagnostics, while the dual-chamber die-cast aluminum housing ensures a NEMA 4X / IP66 rating for reliable performance in boiler rooms and mechanical spaces. Designed to interface seamlessly with Siemens RWF5x controllers, this HART-compatible transmitter utilizes a silicone oil-filled measuring cell to maintain signal stability and accuracy across varying commercial duct pressures.
Key Benefits:- Wide Operating Span: Adjustable sensing from 0.4" to 100" WC to accommodate diverse system requirements.
- Process Compatibility: Standard 4-20mA loop powered output provides universal integration with building automation systems (BAS).
- Local Interface: Built-in digital display and four-button navigation allow for field calibration and parameter adjustments without external tools.
- Rugged Construction: Stainless steel 316L diaphragms and a robust aluminum housing protect against corrosive process media and harsh environmental conditions.
- Advanced Control: Ideally suited for linkage-less burner control and precision level monitoring when paired with Siemens combustion managers.
- Can this unit be used for liquid level control? Yes, the 7MF0340 series is frequently utilized for hydrostatic level measurement in tanks and pressurized vessels.
- What is the enclosure rating? The device features a NEMA 4X and IP66 rated dual-chamber housing, making it suitable for wet or dusty industrial environments.
- Is it compatible with HART communication? Yes, as part of the SITRANS P320 family, it supports HART 7 protocol for remote configuration and diagnostics.
- Does it require a separate power supply? This is a loop-powered transmitter, typically drawing power from the 24V DC analog input of the controller.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
