Siemens Building Technology ZM121/A Control

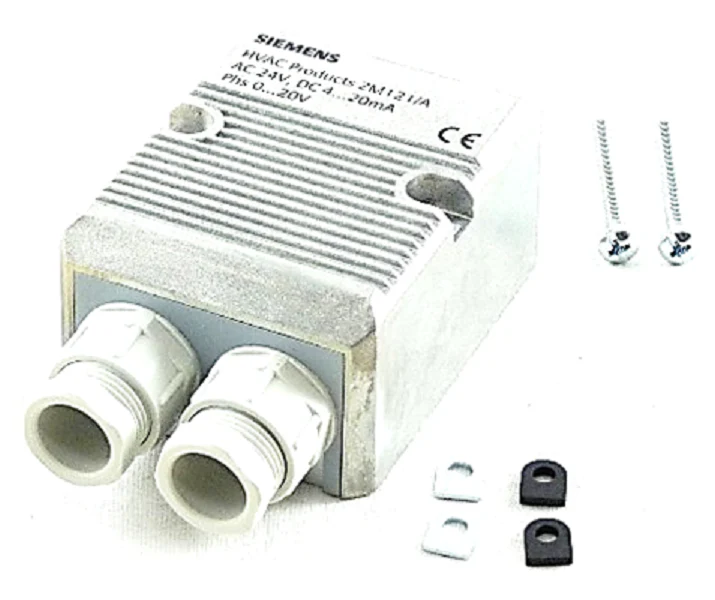

The Siemens Building Technology ZM121/A Control is a ruggedized terminal housing signal transducer designed for the precise regulation of magnetic valves in high-performance HVACR and industrial processes. This Phase Cut Interface acts as a dedicated power amplifier, converting either a 4-20mA current signal or a 0-20V phase cut control signal into a reliable 0-20V DC phase cut output. Engineering for field durability, the ZM121/A Siemens module features an IP54 rated aluminum housing and supports a maximum output power of up to 40W. It is specifically compatible with Siemens M3FK, M3FB, and M2FP03GX valve series, making it a critical component for modulating refrigerant valve control. Operating on a 24V AC power supply, it maintains a precise operating range of 8 to 16 mA while tolerating extreme ambient temperatures ranging from -40°F to 122°F. This unit ensures seamless integration between modern controllers and specialty magnetic actuators without compromising response times or signal integrity.
Key Benefits
- Dual Signal Flexibility: Accepts both 4-20mA and 0-20V phase cut inputs to accommodate diverse controller requirements.
- High Output Capacity: Delivers up to 40 Watts of power, sufficient for Siemens magnetic actuators and large-scale modulating valves.
- Industrial Grade Protection: The IP54 housing provides essential resistance against dust and moisture ingress in mechanical rooms.
- High Impedance Isolation: Features a differential amplifier that isolates signal inputs from the AC supply via high resistance for improved signal stability.
Common Questions
What valves are compatible with the Siemens ZM121/A?
This module is primarily designed for Siemens M3FK..LX, M3FB..LX, and M2FP03GX pilot valves. It is commonly used in commercial refrigeration and large-scale HVAC water-side control applications.
Can I use a 0-10V signal with this specific model?
No, the ZM121/A is calibrated for 4-20mA signals. If your controller outputs a 0-10V DC signal, the Siemens ZM101/A is the appropriate model for that specific input range.
Does this unit require a separate power supply?
The unit requires a 24V AC source. For long-distance wire runs, use a dedicated transformer to prevent voltage drops that could affect the output to the magnetic actuator.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $350.14
-65%$350.14
$122.55Siemens Building Technology ZM121/A Control
The Siemens Building Technology ZM121/A Control is a ruggedized terminal housing signal transducer designed for the precise regulation of magnetic valves in high-performance HVACR and industrial processes. This Phase Cut Interface acts as a dedicated power amplifier, converting either a 4-20mA current signal or a 0-20V phase cut control signal into a reliable 0-20V DC phase cut output. Engineering for field durability, the ZM121/A Siemens module features an IP54 rated aluminum housing and supports a maximum output power of up to 40W. It is specifically compatible with Siemens M3FK, M3FB, and M2FP03GX valve series, making it a critical component for modulating refrigerant valve control. Operating on a 24V AC power supply, it maintains a precise operating range of 8 to 16 mA while tolerating extreme ambient temperatures ranging from -40°F to 122°F. This unit ensures seamless integration between modern controllers and specialty magnetic actuators without compromising response times or signal integrity.
Key Benefits
- Dual Signal Flexibility: Accepts both 4-20mA and 0-20V phase cut inputs to accommodate diverse controller requirements.
- High Output Capacity: Delivers up to 40 Watts of power, sufficient for Siemens magnetic actuators and large-scale modulating valves.
- Industrial Grade Protection: The IP54 housing provides essential resistance against dust and moisture ingress in mechanical rooms.
- High Impedance Isolation: Features a differential amplifier that isolates signal inputs from the AC supply via high resistance for improved signal stability.
Common Questions
What valves are compatible with the Siemens ZM121/A?
This module is primarily designed for Siemens M3FK..LX, M3FB..LX, and M2FP03GX pilot valves. It is commonly used in commercial refrigeration and large-scale HVAC water-side control applications.
Can I use a 0-10V signal with this specific model?
No, the ZM121/A is calibrated for 4-20mA signals. If your controller outputs a 0-10V DC signal, the Siemens ZM101/A is the appropriate model for that specific input range.
Does this unit require a separate power supply?
The unit requires a 24V AC source. For long-distance wire runs, use a dedicated transformer to prevent voltage drops that could affect the output to the magnetic actuator.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
