Siemens Building Technology ZM101/A Control

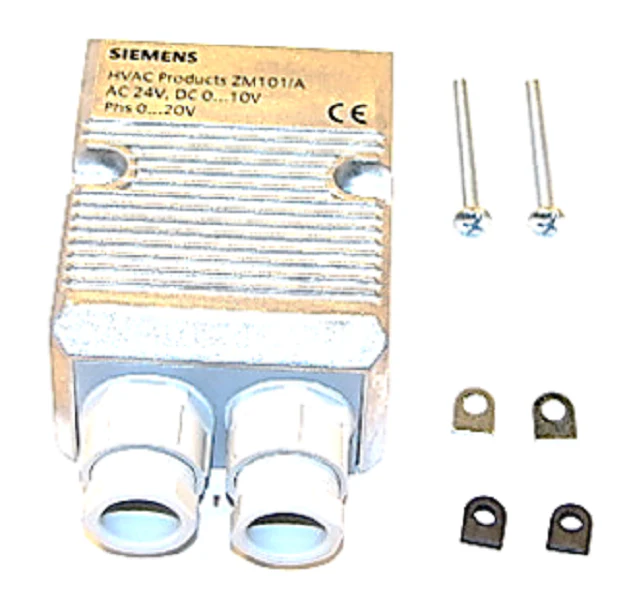

The Siemens Building Technology ZM101/A is a specialized terminal housing for magnetic valves, functioning as a high-precision signal transducer and power amplifier. Engineered for refrigeration and HVACR control, this interface module converts a standard 0-10Vdc positioning signal into a 0-20V phase cut output, providing the necessary torque and speed for refrigerant valves. With a maximum output power of 40W and an IP54 protection rating, it is built for long-term reliability in demanding equipment rooms. This module is the direct replacement for the obsolete ZM100/A and is critical for driving Siemens M3FK..LX and M3FB..LX control valves, as well as M2FP03GX pilot valves with magnetic actuators. The aluminum housing provides a rugged enclosure that operates between -40°F and 122°F, ensuring stable performance across extreme thermal gradients. For contractors, the 24Vac operating voltage and 0-10Vdc control signal compatibility allow for seamless integration into existing Siemens building technology systems.
Key Benefits- Precise Signal Conversion: Accurately transforms 0-10Vdc inputs into high-performance 0-20V phase cut signals for magnetic valve control.
- Heavy-Duty Reliability: Features a 40W power amplifier capacity, essential for driving large magnetic actuators in complex chiller or refrigeration circuits.
- Rugged Environmental Rating: The IP54 rated housing protects internal electronics against dust and splashing water in industrial environments.
- Extensive Valve Compatibility: Specifically designed for Siemens magnetic actuators, ensuring zero-latency communication and proper valve positioning.
Is the ZM101/A compatible with older ZM100/A installations?
Yes, the ZM101/A serves as a direct functional replacement for the obsolete ZM100/A, utilizing the same 0-10Vdc input logic to deliver the required 0-20V phase cut output.
What is the operating range for the valve stroke?
While it accepts a 0-10Vdc input, the typical operating range for the associated magnetic valves is DC 4 to 8 volts, which corresponds to the 0-100% stroke range of the actuator.
Does this module require a separate power supply for the signal conversion?
The unit operates on 24Vac. In some 3-wire applications, the signal negative must be tied to the AC supply terminal, but it can also be configured as a 4-wire interface for isolated control loops.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $350.14
-65%$350.14
$122.55Siemens Building Technology ZM101/A Control
The Siemens Building Technology ZM101/A is a specialized terminal housing for magnetic valves, functioning as a high-precision signal transducer and power amplifier. Engineered for refrigeration and HVACR control, this interface module converts a standard 0-10Vdc positioning signal into a 0-20V phase cut output, providing the necessary torque and speed for refrigerant valves. With a maximum output power of 40W and an IP54 protection rating, it is built for long-term reliability in demanding equipment rooms. This module is the direct replacement for the obsolete ZM100/A and is critical for driving Siemens M3FK..LX and M3FB..LX control valves, as well as M2FP03GX pilot valves with magnetic actuators. The aluminum housing provides a rugged enclosure that operates between -40°F and 122°F, ensuring stable performance across extreme thermal gradients. For contractors, the 24Vac operating voltage and 0-10Vdc control signal compatibility allow for seamless integration into existing Siemens building technology systems.
Key Benefits- Precise Signal Conversion: Accurately transforms 0-10Vdc inputs into high-performance 0-20V phase cut signals for magnetic valve control.
- Heavy-Duty Reliability: Features a 40W power amplifier capacity, essential for driving large magnetic actuators in complex chiller or refrigeration circuits.
- Rugged Environmental Rating: The IP54 rated housing protects internal electronics against dust and splashing water in industrial environments.
- Extensive Valve Compatibility: Specifically designed for Siemens magnetic actuators, ensuring zero-latency communication and proper valve positioning.
Is the ZM101/A compatible with older ZM100/A installations?
Yes, the ZM101/A serves as a direct functional replacement for the obsolete ZM100/A, utilizing the same 0-10Vdc input logic to deliver the required 0-20V phase cut output.
What is the operating range for the valve stroke?
While it accepts a 0-10Vdc input, the typical operating range for the associated magnetic valves is DC 4 to 8 volts, which corresponds to the 0-100% stroke range of the actuator.
Does this module require a separate power supply for the signal conversion?
The unit operates on 24Vac. In some 3-wire applications, the signal negative must be tied to the AC supply terminal, but it can also be configured as a 4-wire interface for isolated control loops.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
