Siemens Building Technology VXP45.32-16 Valve

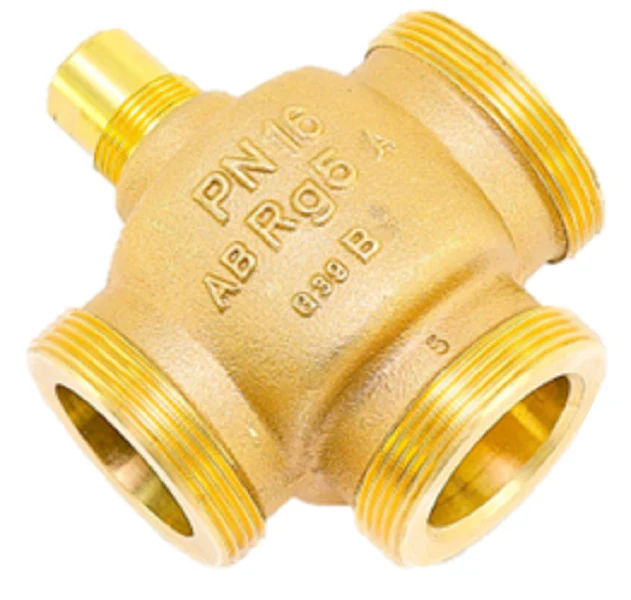

The Siemens Building Technology VXP45.32-16 is a robust 1-1/4 inch 3-port seat valve designed for high-precision water-side control in terminal units and closed-circuit hydronic systems. Built with a durable bronze CC491K (Rg5) body and stainless steel stem, this DN32 mixing valve is engineered for continuous-duty performance in fan coils, air handlers, and chilled ceilings. With a Kvs 16 flow rate and a PN16 pressure rating, it provides stable regulation of heating and chilled water, supporting medium temperatures from 1°C up to 110°C.
For technicians, the VXP45.32-16 offers a high rangeability of >100:1 and a linear flow characteristic in the throughport, ensuring consistent valve performance across varying load conditions. It features G 2" B external threads for flat-seal connections and is purpose-built for seamless integration with Siemens SSC and SSB actuators. This 3-way control valve effectively manages HVAC flow regulation while maintaining a low leakage rate of less than 0.02% of the Kvs value, making it an essential component for efficient building automation and energy management.
Key Benefits:- 1-1/4" DN32 valve body with a high 16 m³/h flow capacity for medium-scale commercial piping.
- Durable bronze construction compatible with water and water-glycol mixtures (up to 50%).
- Linear flow characteristic and 5.5 mm stroke for precise modulating temperature control.
- Compatible with Siemens actuator assemblies (SSB and SSC series) for automated HVAC system integration.
- Maximum operating pressure of 1600 kPa (PN16) ensures reliable flow regulation in high-demand environments.
Can the VXP45.32-16 be used as a diverting valve?
No, the VXP45 series is specifically designed for mixing applications in closed circuits. In these configurations, the valve combines two inlet flows (ports A and B) into a single outlet (port AB) to maintain precise temperature setpoints in terminal unit control.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
