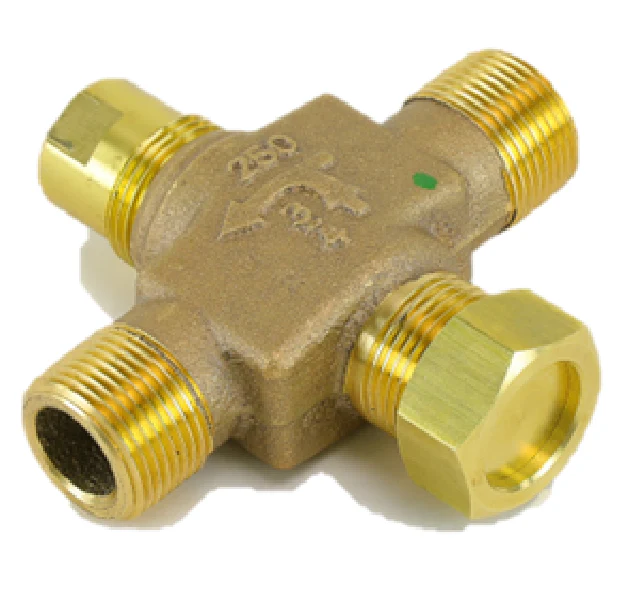

Siemens Building Technology VMP42.14(2) Valve Body
The Siemens Building Technology VMP42.14(2) Valve Body is a professional-grade solution for precise fluid control in HVAC installations, specifically designed for terminal units like fan coil units, induction units, and reheat coils. This 3/4" NPT valve body features a 2.9 Cv rating and a high-performance bronze body construction with stainless steel trim to ensure long-term reliability in demanding hydronic systems. This model is exceptionally versatile; while shipped as a 2-way globe valve, it is easily field-convertible to a 3-way mixing valve by simply removing the cap from the bottom bypass port. Engineered for compatibility with water and glycol solutions (up to 50%), it handles a medium temperature range of 41°F to 230°F. The ANSI Class 250 rating and 400 psig close-off pressure provide robust performance in high-pressure applications. Installation is streamlined with a standard threaded connection, allowing for direct integration into existing commercial HVAC systems without specialized tools for actuator assembly.
Key Benefits
- Dual-Configuration Design: Easily converts from a 2-way to a 3-way mixing valve for maximum job site flexibility.
- Industrial Durability: Features a bronze body and stainless steel stem and plug to resist corrosion and wear.
- High Precision Control: Delivers an equal percentage flow characteristic for superior modulating service and temperature stability.
- Simplified Installation: Standard 3/4 inch NPT connections and tool-free actuator mounting reduce labor time for technicians.
- Robust Specifications: Supports ANSI Class 250 pressure requirements with a high 400 psig close-off capacity.
Common Questions
How do I convert this from 2-way to 3-way operation?
Simply remove the brass cap located on the bottom bypass port (Port B). Once removed, the valve functions as a 3-way mixing valve. Ensure flow direction follows the stamped arrows on the casting.
What actuators are compatible with the VMP42.14(2)?
This valve body is designed to work seamlessly with Siemens SSP series electronic actuators, providing reliable modulating or on/off control without the need for additional adapters.
Can this valve be used for steam applications?
No, the VMP42 series is specifically rated for hot and chilled water or water-glycol mixtures. Using it in steam systems may lead to premature seal failure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $189.30
-65%$189.30
$66.25Siemens Building Technology VMP42.14(2) Valve Body
The Siemens Building Technology VMP42.14(2) Valve Body is a professional-grade solution for precise fluid control in HVAC installations, specifically designed for terminal units like fan coil units, induction units, and reheat coils. This 3/4" NPT valve body features a 2.9 Cv rating and a high-performance bronze body construction with stainless steel trim to ensure long-term reliability in demanding hydronic systems. This model is exceptionally versatile; while shipped as a 2-way globe valve, it is easily field-convertible to a 3-way mixing valve by simply removing the cap from the bottom bypass port. Engineered for compatibility with water and glycol solutions (up to 50%), it handles a medium temperature range of 41°F to 230°F. The ANSI Class 250 rating and 400 psig close-off pressure provide robust performance in high-pressure applications. Installation is streamlined with a standard threaded connection, allowing for direct integration into existing commercial HVAC systems without specialized tools for actuator assembly.
Key Benefits
- Dual-Configuration Design: Easily converts from a 2-way to a 3-way mixing valve for maximum job site flexibility.
- Industrial Durability: Features a bronze body and stainless steel stem and plug to resist corrosion and wear.
- High Precision Control: Delivers an equal percentage flow characteristic for superior modulating service and temperature stability.
- Simplified Installation: Standard 3/4 inch NPT connections and tool-free actuator mounting reduce labor time for technicians.
- Robust Specifications: Supports ANSI Class 250 pressure requirements with a high 400 psig close-off capacity.
Common Questions
How do I convert this from 2-way to 3-way operation?
Simply remove the brass cap located on the bottom bypass port (Port B). Once removed, the valve functions as a 3-way mixing valve. Ensure flow direction follows the stamped arrows on the casting.
What actuators are compatible with the VMP42.14(2)?
This valve body is designed to work seamlessly with Siemens SSP series electronic actuators, providing reliable modulating or on/off control without the need for additional adapters.
Can this valve be used for steam applications?
No, the VMP42 series is specifically rated for hot and chilled water or water-glycol mixtures. Using it in steam systems may lead to premature seal failure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
