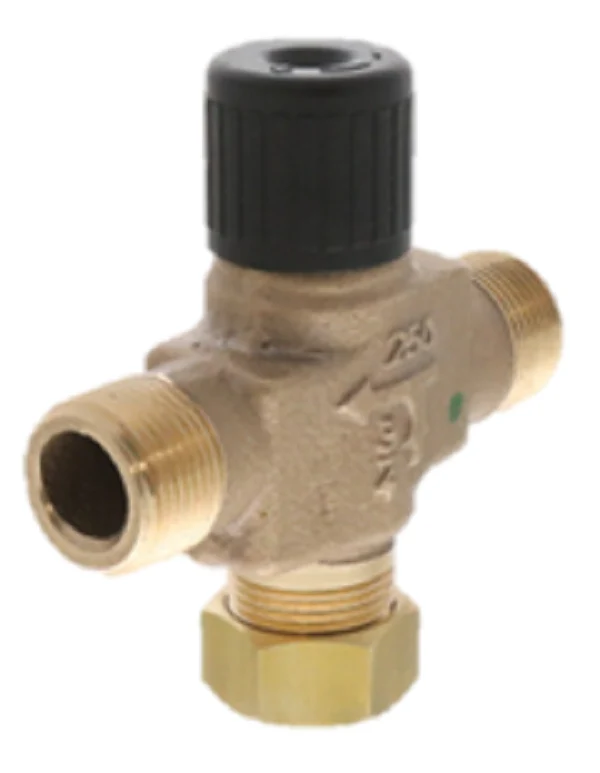

Siemens Building Technology VMP42.13(2) Valve Body
The Siemens Building Technology VMP42.13(2) Valve Body is a rugged, ANSI Class 250 rated globe valve designed specifically for terminal unit applications in commercial systems. Featuring a 3/4 inch NPT threaded connection and a 1.9 Cv flow coefficient, this bronze valve body is engineered to withstand high-pressure differentials across fan coil units, induction units, and small reheat coils. The universal design allows for field-configurable operation; keeping the bypass cap in place facilitates standard 2-way valve service, while removing the cap from the bottom port converts the unit into a 3-way mixing valve configuration.
Built with stainless steel trim and a high-performance double O-ring packing, the VMP42.13(2) ensures long-term reliability in water and glycol solutions up to 50% concentration. The stem and plug assembly provides a 100:1 rangeability, delivering precise modulating control within a temperature range of 41°F to 230°F. Since no specialized tools are required for actuator mounting, field technicians can rapidly integrate these bodies into existing 2-pipe or 3-pipe HVAC distribution systems with minimal downtime.
- Universal Configuration: Easily transitions between 2-port and 3-port mixing applications via a removable bypass cap.
- High Durability: Constructed with a bronze body and stainless steel stem to resist corrosion in high-cycle hydronic environments.
- Precise Flow Control: Rated for a 1.9 Cv, providing stable performance for small-bore terminal unit installations.
- Fluid Compatibility: Optimized for use with water and glycol solutions, supporting modern hydronic system requirements.
Can this valve be used for diverting service?
No, for 3-way applications, these valves must always be piped as mixing valves with the flow entering ports A and B and exiting port AB.
Is an actuator included with the VMP42.13(2)?
This item is the valve body only. It is compatible with Siemens SSD or SQE series actuators, which mount directly to the 3/4" NPT threads without tools.
What is the maximum pressure drop for this valve?
The VMP42.13(2) is rated for a maximum recommended differential pressure (?P) of 58 psi for modulating service.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
