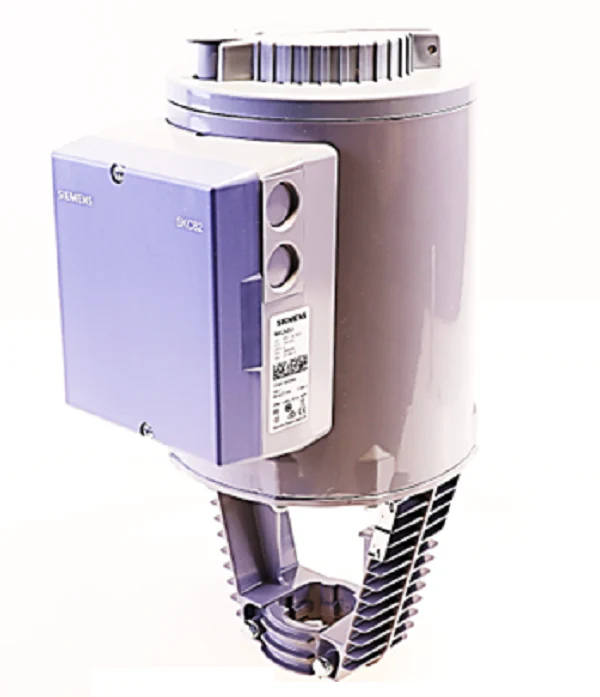

Siemens Building Technology SKC62U Actuator
The Siemens Building Technology SKC62U Actuator is a heavy-duty electrohydraulic valve actuator engineered for precise modulating control of globe valves in demanding HVAC and industrial process systems. Designed for 24V AC operation, this unit delivers a powerful 2800 N (630 lbf) force, making it the ideal choice for high-pressure steam and water applications requiring independent control. The proportional control signal is field-selectable between 0-10VDC and 4-20mA, offering seamless integration with building automation systems. With a substantial 1.5-inch (40 mm) stroke, the SKC62U provides consistent performance across large valve bodies such as the Siemens Flowrite line. Its robust die-cast aluminum housing ensures structural integrity in commercial environments, while the integrated spring return fail-safe function guarantees mechanical closure during power loss. The SKC62U Siemens actuator also features a manual override and clear visual position indication to streamline field service and emergency operation.
Key Benefits- High Thrust Output: Provides 1000 lbs nominal force for reliable close-off against high differential pressures.
- Universal Signal Compatibility: Accepts 0-10VDC, 4-20mA, or 0-1000 Ohm signals for broad controller versatility.
- Simplified Installation: Direct-coupled design allows for quick mounting to valve bonnets without specialized tools.
- Emergency Reliability: Mechanical spring return provides a 20-second fail-safe response for system protection.
- Maintenance-Free Design: Electrohydraulic operation eliminates the need for periodic lubrication or internal adjustments.
Is the SKC62U compatible with 120V systems?
No, this specific model requires 24V AC supply voltage. Ensure your transformer is appropriately sized for the 28 VA power consumption of this actuator.
Can I manually operate the valve during a commissioning phase?
Yes, the Siemens SKC62U includes a manual override handwheel. Note that the actuator will return to automatic control once power is applied and the signal is recognized.
What valves work with this actuator?
It is primarily designed for Siemens Flowrite 599 Series globe valves with a 1.5-inch stroke, but can be adapted to other standard valves using universal retrofit kits.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,502.69
-65%$1,502.69
$525.94Siemens Building Technology SKC62U Actuator
The Siemens Building Technology SKC62U Actuator is a heavy-duty electrohydraulic valve actuator engineered for precise modulating control of globe valves in demanding HVAC and industrial process systems. Designed for 24V AC operation, this unit delivers a powerful 2800 N (630 lbf) force, making it the ideal choice for high-pressure steam and water applications requiring independent control. The proportional control signal is field-selectable between 0-10VDC and 4-20mA, offering seamless integration with building automation systems. With a substantial 1.5-inch (40 mm) stroke, the SKC62U provides consistent performance across large valve bodies such as the Siemens Flowrite line. Its robust die-cast aluminum housing ensures structural integrity in commercial environments, while the integrated spring return fail-safe function guarantees mechanical closure during power loss. The SKC62U Siemens actuator also features a manual override and clear visual position indication to streamline field service and emergency operation.
Key Benefits- High Thrust Output: Provides 1000 lbs nominal force for reliable close-off against high differential pressures.
- Universal Signal Compatibility: Accepts 0-10VDC, 4-20mA, or 0-1000 Ohm signals for broad controller versatility.
- Simplified Installation: Direct-coupled design allows for quick mounting to valve bonnets without specialized tools.
- Emergency Reliability: Mechanical spring return provides a 20-second fail-safe response for system protection.
- Maintenance-Free Design: Electrohydraulic operation eliminates the need for periodic lubrication or internal adjustments.
Is the SKC62U compatible with 120V systems?
No, this specific model requires 24V AC supply voltage. Ensure your transformer is appropriately sized for the 28 VA power consumption of this actuator.
Can I manually operate the valve during a commissioning phase?
Yes, the Siemens SKC62U includes a manual override handwheel. Note that the actuator will return to automatic control once power is applied and the signal is recognized.
What valves work with this actuator?
It is primarily designed for Siemens Flowrite 599 Series globe valves with a 1.5-inch stroke, but can be adapted to other standard valves using universal retrofit kits.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
