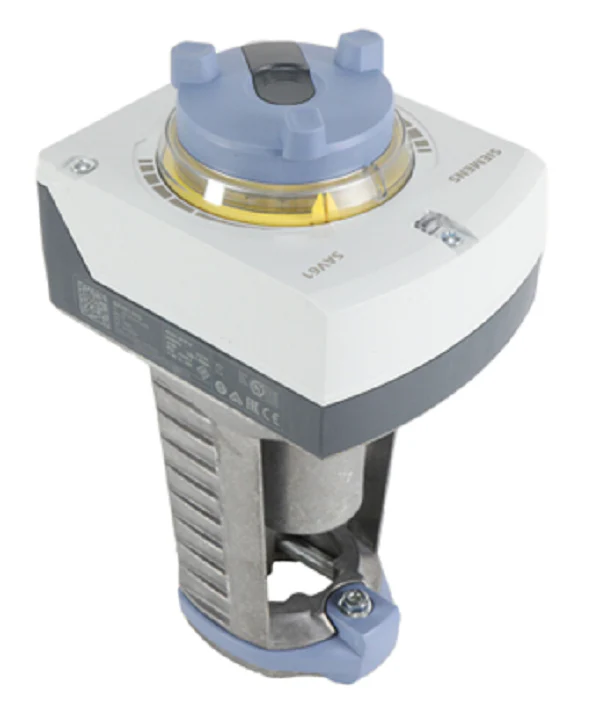

Siemens Building Technology SAV61.00U Actuator
The Siemens Building Technology SAV61.00U Actuator is a precision-engineered non-spring return electronic valve actuator designed for high-performance modulation in HVAC systems. Engineered to drive Siemens pressure independent control valves (PICV) with a 1-1/2-inch (40 mm) stroke, this unit provides a robust 360 lb (1600 N) nominal force for reliable chilled water valve control and hot water applications. It operates on a versatile 24Vac/Vdc power supply and accepts a 0-10Vdc control signal or 4-20 mA input, which can be easily toggled via internal DIP switches. As a veteren technician, you will appreciate the direct-coupled installation that requires no special tools, alongside a manual override with clear visual position indication for field commissioning. With a 120-second run time and UL plenum rating, this 0-10Vdc valve actuator ensures stable proportional control and precise HVAC valve modulation in demanding commercial environments.
Key Benefits- Efficient Force Delivery: Provides 360 lb (1600 N) of force to handle high-differential pressure in large-scale piping networks.
- Flexible Signal Compatibility: Supports both 0-10 Vdc and 4-20 mA proportional inputs for seamless integration with varied building automation systems.
- Simplified Installation: Features a direct-coupled design and a 40 mm stroke specifically calibrated for Siemens flanged PICVs.
- Manual Override: Includes a manual adjuster for emergency positioning and visual stroke indication for easy troubleshooting.
- Parallel Operation: Efficiently drive up to 10 actuators from a single controller output (1 mA rating) to streamline complex circuit wiring.
Is this actuator fail-safe for power loss scenarios?
No, the SAV61.00U is a non-spring return actuator, meaning it will maintain its last position upon loss of power. For fail-safe requirements, a spring-return model should be specified.
Does this unit support 4-20 mA signals out of the box?
Yes, while the default is 0-10Vdc, you can select 4-20 mA by adjusting DIP switch 1 inside the wiring compartment.
Can I install this actuator outdoors?
This model is rated for indoor use and plenum installations. For outdoor applications, a dedicated weather shield (such as the ASK39.1) is required to maintain housing protection levels.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
