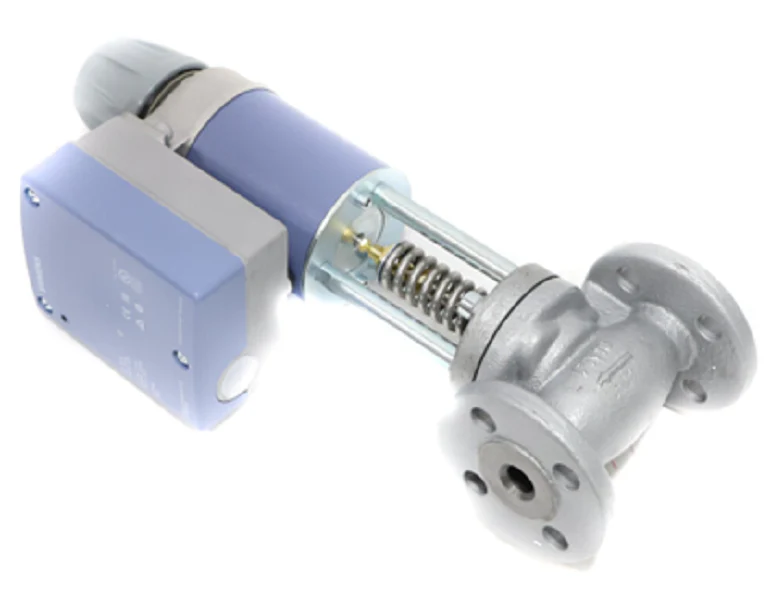

Siemens Building Technology MVF461H15-3 Valve
The Siemens Building Technology MVF461H15-3 Valve is a high-performance 1/2" magnetic modulating control valve engineered for the precise regulation of saturated steam and high-temperature hot water. Featuring a 3.5 Cv flow coefficient, this 2-port through-port valve utilizes a frictionless magnetic actuator to achieve a positioning time of less than two seconds. This rapid response is critical for district heating stations and industrial heat exchangers where load fluctuations require instantaneous correction. The MVF461H15-3 supports selectable control signals including 0-10 VDC, 2-10 VDC, and 4-20 mA, providing seamless integration with standard building automation systems. Built with a robust nodular cast iron body and stainless steel trim, it handles medium temperatures up to 356°F and maintains a fail-safe closed position (A → AB) upon power loss. With a high resolution of 1:1000 and wear-free inductive stroke measurement, this valve ensures long-term calibration stability and maintenance-free operation in demanding HVACR environments.
Key Benefits- Ultra-Fast Response: Achieves full stroke in under 2 seconds for superior temperature stability.
- High Rangeability: Exceptional resolution (>1:1000) allows for precise low-flow control without hunting.
- Maintenance-Free Design: Frictionless magnetic coil technology eliminates the mechanical wear common in motorized actuators.
- Fail-Safe Security: Integrated spring-return function ensures the valve returns to the closed position during power interruptions.
- Versatile Signaling: Field-selectable DIP switches allow for easy toggling between voltage and current control signals.
Is the MVF461H15-3 compatible with saturated steam?
Yes, it is specifically designed for saturated steam applications and high-temperature water with a maximum medium temperature of 356°F (180°C).
Can the actuator be replaced separately?
No, the valve body and magnetic actuator are calibrated as a single unit and cannot be separated. However, the internal electronic module (ASE12) is replaceable if necessary.
Does this valve require a specific mounting orientation?
The valve should be mounted in an upright to horizontal position. It must not be mounted below the horizontal plane to prevent moisture from entering the actuator housing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,937.73
-65%$1,937.73
$678.21Siemens Building Technology MVF461H15-3 Valve
The Siemens Building Technology MVF461H15-3 Valve is a high-performance 1/2" magnetic modulating control valve engineered for the precise regulation of saturated steam and high-temperature hot water. Featuring a 3.5 Cv flow coefficient, this 2-port through-port valve utilizes a frictionless magnetic actuator to achieve a positioning time of less than two seconds. This rapid response is critical for district heating stations and industrial heat exchangers where load fluctuations require instantaneous correction. The MVF461H15-3 supports selectable control signals including 0-10 VDC, 2-10 VDC, and 4-20 mA, providing seamless integration with standard building automation systems. Built with a robust nodular cast iron body and stainless steel trim, it handles medium temperatures up to 356°F and maintains a fail-safe closed position (A → AB) upon power loss. With a high resolution of 1:1000 and wear-free inductive stroke measurement, this valve ensures long-term calibration stability and maintenance-free operation in demanding HVACR environments.
Key Benefits- Ultra-Fast Response: Achieves full stroke in under 2 seconds for superior temperature stability.
- High Rangeability: Exceptional resolution (>1:1000) allows for precise low-flow control without hunting.
- Maintenance-Free Design: Frictionless magnetic coil technology eliminates the mechanical wear common in motorized actuators.
- Fail-Safe Security: Integrated spring-return function ensures the valve returns to the closed position during power interruptions.
- Versatile Signaling: Field-selectable DIP switches allow for easy toggling between voltage and current control signals.
Is the MVF461H15-3 compatible with saturated steam?
Yes, it is specifically designed for saturated steam applications and high-temperature water with a maximum medium temperature of 356°F (180°C).
Can the actuator be replaced separately?
No, the valve body and magnetic actuator are calibrated as a single unit and cannot be separated. However, the internal electronic module (ASE12) is replaceable if necessary.
Does this valve require a specific mounting orientation?
The valve should be mounted in an upright to horizontal position. It must not be mounted below the horizontal plane to prevent moisture from entering the actuator housing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
