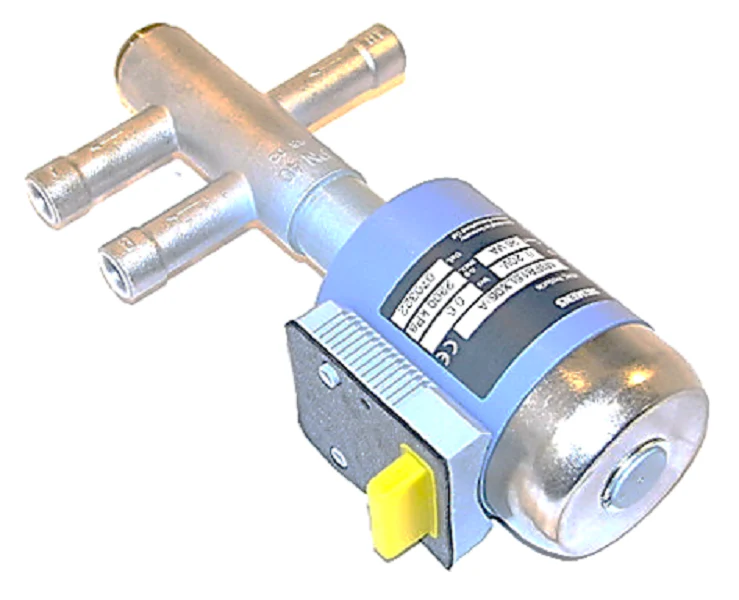

Siemens Building Technology M3FB15LX06/A Valve Assembly
The Siemens M3FB15LX06/A is a precision-engineered modulating refrigerant valve designed for critical capacity control in industrial refrigeration and heat recovery systems. As a 5/8" hot gas bypass valve, this assembly utilizes a high-speed magnetic actuator to provide exceptional loop stability, achieving full-range positioning in less than one second. With a positioning resolution exceeding 1:200, it ensures linear flow characteristics and high-accuracy pressure regulation for closed-loop applications. Constructed with a rugged steel valve body and a CrNi steel/brass internal set, the M3FB15LX06/A is compatible with a wide array of safety refrigerants, including R22, R134a, R404A, R407C, and R507. This 24 VAC valve assembly supports multiple control signals (0-10 VDC, 4-20 mA) and features an integrated spring return function (AB->A closed) to ensure system protection during power loss. Rated for a maximum operating pressure of 460 PSI (PN32), it maintains a low 0.05% leakage rate, making it an essential component for technicians requiring reliable, maintenance-free performance in demanding HVACR environments.
Key Benefits- High-Speed Actuation: Achieves full stroke in less than 1 second, providing immediate response to load changes and superior HVAC loop stability.
- Durable Construction: Features a hermetically sealed steel body and robust internals designed for medium temperatures ranging from -40°F to 248°F.
- Universal Mounting: Engineered for flexible installation, the Siemens M3FB15LX06/A can be mounted in any position, simplifying field retrofits.
- Precise Capacity Control: Offers a 0.7 Cv rating and modulating control to prevent compressor cycling and optimize energy efficiency in chiller and refrigeration units.
Is the Siemens M3FB15LX06/A compatible with flammable refrigerants?
No, this valve assembly is specifically designed for use with organic safety refrigerants such as R407C, R134a, and R404A. It is not suitable for flammable refrigerants or ammonia (R717).
What control signal does this valve assembly require?
The unit is versatile, accepting DC 0...10 V, DC 4...20 mA, or DC 0...20 V Phs positioning signals, allowing for easy integration into existing building automation systems.
Does this assembly include the electronics housing?
This specific model is a modulating control valve for hot-gas control and may require a separate ZM.. electronics module depending on your specific controller interface and 5/8" solder connection requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
