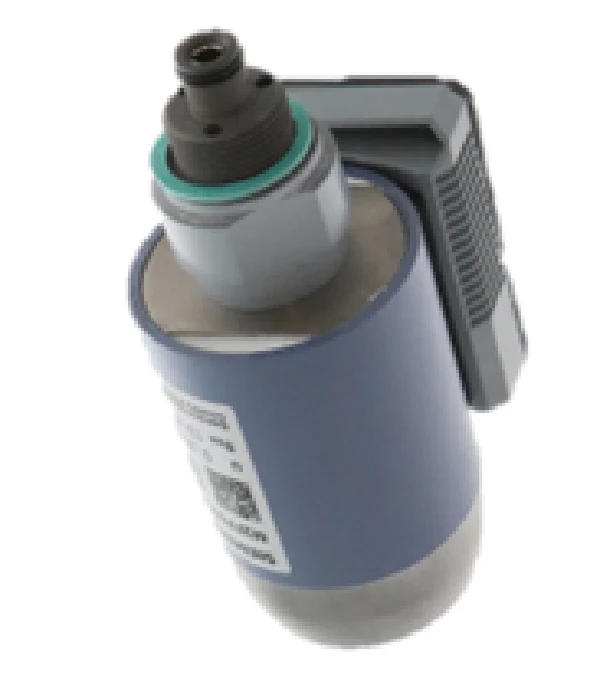

Siemens Building Technology M2FP03GX Pilot Valve
The Siemens M2FP03GX Pilot Valve is a specialized HVAC control valve assembly designed for high-precision modulation in industrial and commercial refrigeration environments. This pilot-operated valve functions as the primary control mechanism for Siemens main valves, ensuring stable evaporation pressure and precise temperature management. Built with a rugged, corrosion-resistant housing, the M2FP03GX is engineered to handle high-pressure refrigerants and aggressive media without performance degradation. For technicians, this unit simplifies the control of large refrigerant mass flows by utilizing a pressure-driven pilot signal to actuate the main valve seat. Effective in both liquid and suction line applications, it maintains tight tolerances to prevent short-cycling and hunting. Proper installation requires verifying flow directionality and ensuring compatibility with existing Siemens building technology infrastructure to optimize system efficiency. This component is essential for maintaining strict setpoints in large-scale cooling plants where refrigerant flow control accuracy is critical to operational stability.
Key Benefits
- Precise Pressure Regulation: Enhances the accuracy of the main valve for stabilized suction pressure and temperature.
- Industrial-Grade Durability: Constructed to withstand high-pressure fluctuations and heavy-duty cycling in refrigeration cycles.
- Optimized Compatibility: Designed specifically for seamless integration with Siemens M-series valve bodies and control systems.
- Fast Response Times: Provides immediate feedback to the main valve body to compensate for rapid load changes.
- Field-Serviceable Design: Modular construction allows for straightforward maintenance and inspection by HVACR contractors.
Common Questions
Is the Siemens M2FP03GX compatible with CO2 systems?
Compatibility depends on the specific pressure rating and the main valve it is paired with; always verify the maximum operating pressure (MOP) against the R-744 system specifications before installation.
What causes a pilot valve to fail to actuate the main valve?
Common issues include debris in the pilot line, a ruptured diaphragm, or incorrect pressure differential settings that prevent the pilot signal from overcoming the main valve spring tension.
Can this pilot valve be mounted in any orientation?
While Siemens designs these for versatility, it is standard practice for refrigeration technicians to mount them upright to prevent oil or sediment buildup from interfering with the pilot orifice.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
