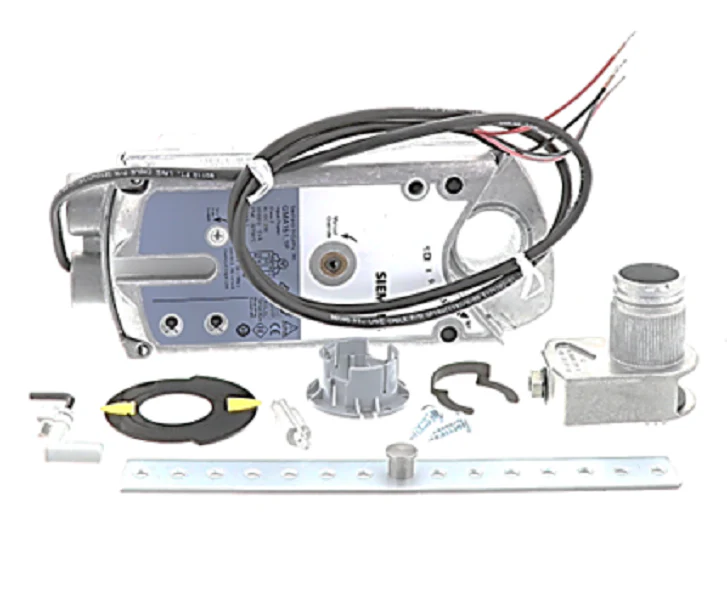

Siemens Building Technology GMA151.1P Actuator
For contractors managing VAV terminals or multi-zone air handlers, the Siemens GMA151.1P provides a reliable 62 lb-in torque solution for precise air flow control. This OpenAir GMA Series actuator is engineered for modulating control utilizing a 2 to 10 VDC input signal, ensuring responsive positioning for return air, exhaust, or bypass dampers. Built with a brushless DC motor, this unit offers stall protection and consistent performance without the maintenance requirements of older brushed models. The bi-directional fail-safe spring return is a critical safety feature, ensuring the damper reaches its designated home position during a power loss event.
Installation on the job site is streamlined by the self-centering shaft coupling, which accommodates various shaft diameters and eliminates the risk of side-loading. The NEMA 1 rated enclosure is constructed from die-cast aluminum for durability in demanding mechanical rooms, and the 3-foot plenum-rated cable allows for direct integration into air handling spaces without additional conduit in many jurisdictions. With a 90-second runtime and a 15-second spring return, the GMA151.1P is a standard-setting 24V damper actuator for modern building automation systems.
- Compatible with 24 VAC/VDC power supplies for versatility across different control panels.
- Features built-in feedback for real-time position monitoring via the automation front-end.
- Equipped with manual override to allow for easy air balancing and system testing during commissioning.
- The plenum-rated cable simplifies wiring in ceiling returns and air ducts.
- Compact footprint makes it ideal for tight spaces in existing HVAC retrofits.
What is the torque rating for this unit?
The Siemens GMA151.1P provides 62 lb-in (7 Nm) of torque, suitable for dampers up to approximately 15 square feet depending on the seals and air velocity.
Can I change the fail-safe direction?
Yes, the bi-directional fail-safe design allows you to determine the spring return direction (clockwise or counter-clockwise) simply by flipping the actuator on the damper shaft.
Is this actuator suitable for plenum applications?
Yes, this model features an 18 AWG plenum-rated cable, meeting the fire safety requirements for installation within air handling spaces.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
