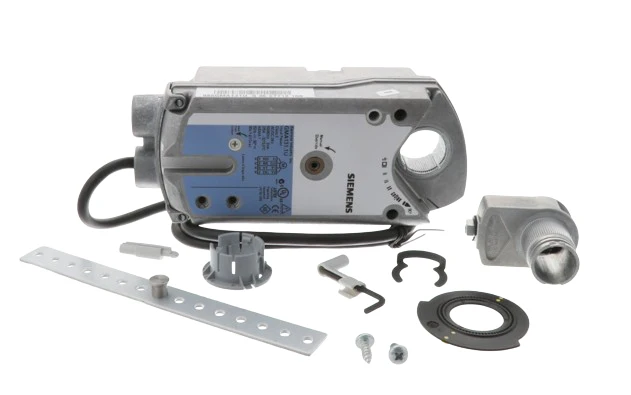

Siemens Building Technology GMA131.1U Actuator
The Siemens Building Technology GMA131.1U is a specialized OpenAir electronic damper actuator engineered for commercial HVAC applications. This 24V spring return actuator provides 62 lb-in torque (7 Nm), making it an ideal choice for managing return air, mixed air, and exhaust dampers in both constant and variable air volume (VAV) systems. Designed with three-position control (floating), it allows for precise positioning while ensuring a reliable fail-safe return to the "0" position during power loss. The brushless DC motor technology prevents burnout by providing internal stall protection throughout the 90-degree rotation. For the field technician, the self-centering shaft coupling and 90-second runtime streamline the commissioning process, while the NEMA 1 (IP54) die-cast aluminum housing ensures durability in demanding mechanical rooms. This unit is built for direct-coupled rotary damper mounting, offering a robust solution for contractors focused on long-term performance and system integrity.
Key Benefits:- Fail-Safe Protection: Reliable bi-directional spring return ensures dampers reach a safe state during power interruptions.
- Stall Protection: Integrated brushless DC motor technology eliminates the need for limit switches by protecting against mechanical blockages.
- Precise Control: Supports 3-position floating control for versatile airflow management in HVACR systems.
- Contractor-Friendly Install: Features a self-centering shaft coupling and a 3-foot pre-wired cable to reduce labor time on the job site.
- What is the torque rating of the GMA131.1U? This actuator delivers a rated torque of 62 lb-in, suitable for dampers up to approximately 15 square feet.
- Does this model include auxiliary switches? The standard GMA131.1U does not include auxiliary switches; if your sequence of operations requires position feedback, verify the specific sub-model suffix.
- Can it be used with 24V DC? Yes, this unit is compatible with both 24 VAC and 24 VDC power supplies, providing flexibility for various controller types.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $228.87
-65%$228.87
$80.10Siemens Building Technology GMA131.1U Actuator
The Siemens Building Technology GMA131.1U is a specialized OpenAir electronic damper actuator engineered for commercial HVAC applications. This 24V spring return actuator provides 62 lb-in torque (7 Nm), making it an ideal choice for managing return air, mixed air, and exhaust dampers in both constant and variable air volume (VAV) systems. Designed with three-position control (floating), it allows for precise positioning while ensuring a reliable fail-safe return to the "0" position during power loss. The brushless DC motor technology prevents burnout by providing internal stall protection throughout the 90-degree rotation. For the field technician, the self-centering shaft coupling and 90-second runtime streamline the commissioning process, while the NEMA 1 (IP54) die-cast aluminum housing ensures durability in demanding mechanical rooms. This unit is built for direct-coupled rotary damper mounting, offering a robust solution for contractors focused on long-term performance and system integrity.
Key Benefits:- Fail-Safe Protection: Reliable bi-directional spring return ensures dampers reach a safe state during power interruptions.
- Stall Protection: Integrated brushless DC motor technology eliminates the need for limit switches by protecting against mechanical blockages.
- Precise Control: Supports 3-position floating control for versatile airflow management in HVACR systems.
- Contractor-Friendly Install: Features a self-centering shaft coupling and a 3-foot pre-wired cable to reduce labor time on the job site.
- What is the torque rating of the GMA131.1U? This actuator delivers a rated torque of 62 lb-in, suitable for dampers up to approximately 15 square feet.
- Does this model include auxiliary switches? The standard GMA131.1U does not include auxiliary switches; if your sequence of operations requires position feedback, verify the specific sub-model suffix.
- Can it be used with 24V DC? Yes, this unit is compatible with both 24 VAC and 24 VDC power supplies, providing flexibility for various controller types.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Siemens Building Technology GMA131.1U is a specialized OpenAir electronic damper actuator engineered for commercial HVAC applications. This 24V spring return actuator provides 62 lb-in torque (7 Nm), making it an ideal choice for managing return air, mixed air, and exhaust dampers in both constant and variable air volume (VAV) systems. Designed with three-position control (floating), it allows for precise positioning while ensuring a reliable fail-safe return to the "0" position during power loss. The brushless DC motor technology prevents burnout by providing internal stall protection throughout the 90-degree rotation. For the field technician, the self-centering shaft coupling and 90-second runtime streamline the commissioning process, while the NEMA 1 (IP54) die-cast aluminum housing ensures durability in demanding mechanical rooms. This unit is built for direct-coupled rotary damper mounting, offering a robust solution for contractors focused on long-term performance and system integrity.
Key Benefits:- Fail-Safe Protection: Reliable bi-directional spring return ensures dampers reach a safe state during power interruptions.
- Stall Protection: Integrated brushless DC motor technology eliminates the need for limit switches by protecting against mechanical blockages.
- Precise Control: Supports 3-position floating control for versatile airflow management in HVACR systems.
- Contractor-Friendly Install: Features a self-centering shaft coupling and a 3-foot pre-wired cable to reduce labor time on the job site.
- What is the torque rating of the GMA131.1U? This actuator delivers a rated torque of 62 lb-in, suitable for dampers up to approximately 15 square feet.
- Does this model include auxiliary switches? The standard GMA131.1U does not include auxiliary switches; if your sequence of operations requires position feedback, verify the specific sub-model suffix.
- Can it be used with 24V DC? Yes, this unit is compatible with both 24 VAC and 24 VDC power supplies, providing flexibility for various controller types.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
