Siemens Building Technology GLB161.1P Actuator

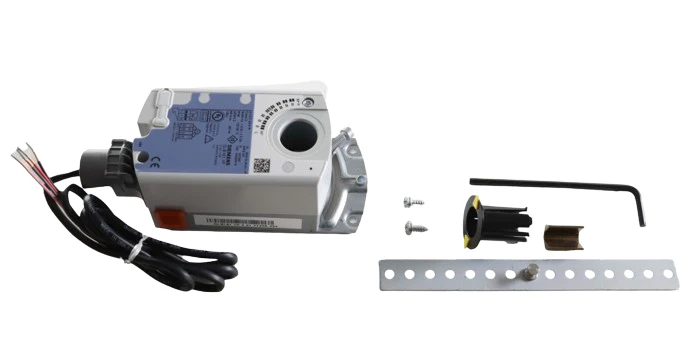

The Siemens GLB161.1P OpenAir Actuator is a robust, non-spring return (NSR) damper actuator engineered for precise performance in HVAC systems. Optimized for 0-10VDC modulating control, this unit delivers 88 lb-in (10 Nm) of torque, making it a reliable choice for constant or variable air volume (VAV) applications. The integrated 24V plenum cable ensures the 18 AWG wiring meets building code requirements for air handling spaces, while the compact housing allows for installation in tight mechanical runs. Field technicians will appreciate the self-adapting capability, which automatically scales the control signal to the damper’s actual mechanical range, ensuring accurate positioning without manual recalibration. With a 125-second runtime (at 60 Hz) and a built-in position feedback signal, this Siemens GLB series actuator provides real-time system monitoring. Whether you are replacing a legacy unit or commissioning a new BAS (Building Automation System), the GLB161.1P offers the durability and signal accuracy required for professional-grade air regulation.
Key Benefits- Precise Modulating Control: Operates on a standard 0-10VDC signal with a 2-10VDC feedback output for accurate monitoring.
- Universal Compatibility: Designed for direct-coupled mounting on 3/8-inch to 5/8-inch round shafts or 1/4-inch to 1/2-inch square shafts.
- Code Compliant Wiring: Pre-cabled with 3-foot plenum-rated cable for safe installation in ceiling returns and air ducts.
- Adaptive Stroke Logic: Features a self-adapt switch that adjusts the 100% control signal to match limited mechanical rotation.
- Manual Override: Includes a manual declutch button to allow for damper positioning during power-loss or testing.
Is the GLB161.1P suitable for fail-safe applications?
No, this is a non-spring return actuator. It will maintain its last position upon loss of power rather than returning to a "normally closed" or "normally open" state.
What is the torque rating for this Siemens actuator?
This model provides 88 lb-in (10 Nm) of torque, suitable for dampers up to approximately 18-20 square feet, depending on sealing and air pressure.
Can the direction of rotation be changed?
Yes, the rotation direction (clockwise or counter-clockwise) is easily selected via a 125-second runtime switch located on the actuator housing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
