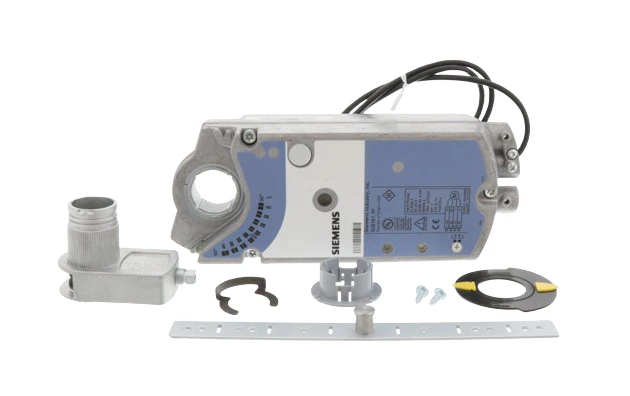

Siemens Building Technology GIB161.1P Actuator
The Siemens GIB161.1P is a high-torque non-spring return actuator engineered for precise modulating control in demanding commercial HVAC configurations. Delivering a robust 310 lb-in torque, this 24V damper actuator is specifically designed to handle large-scale dampers, including return air, exhaust, and face-and-bypass applications. Built with a rugged all-metal housing and brushless motor technology, the unit ensures long-term operational stability and synchronous timing regardless of load. The position feedback feature provides a 0 to 10 Vdc signal, allowing for real-time monitoring and integration into sophisticated building automation systems. With its unique self-centering shaft coupling, this 0-10V control device simplifies installation on shafts up to 1 inch in diameter, ensuring a secure, slip-free connection. This plenum-rated unit is a reliable solution for technicians requiring high-capacity performance in VAV systems and air handling units.
Key Benefits- Powerful Output: Provides 310 lb-in torque (35 Nm) to manage high-static pressure dampers and large surface areas without performance degradation.
- Precise Modulation: Utilizes a 0-10 Vdc control signal for granular positioning, optimizing airflow efficiency and energy consumption.
- Durable Construction: Features a rugged all-metal housing and a brushless DC motor designed for continuous duty and high reliability in mechanical rooms.
- Easy Integration: Includes a self-centering shaft coupling and pre-wired plenum-rated cable to reduce field labor and ensure code compliance.
- Manual Override: Equipped with a manual override button and a visible position indicator for rapid mechanical testing and commissioning.
What is the typical runtime for this actuator?
The Siemens GIB161.1P features a standard runtime of approximately 125 seconds at 60Hz (150 seconds at 50Hz) for a 90-degree rotation, ensuring smooth damper modulation without creating pressure surges.
Can this actuator be used in tandem?
Yes, these units are designed with tandem mount capability, allowing two actuators to be coupled on a single shaft when higher torque than 310 lb-in is required for oversized damper sections.
Is this model compatible with floating control?
The GIB161.1P is specifically a modulating control model (0-10 Vdc). For three-position or floating control applications, refer to the GIB131 or GIB121 series equivalents.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
