Siemens Building Technology GIB136.1P Actuator

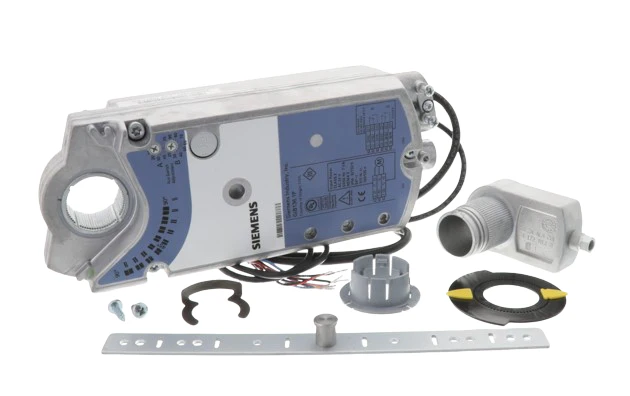

The Siemens GIB136.1P OpenAir Actuator is a high-torque, non-spring return (NSR) damper actuator engineered for precise floating control in demanding HVACR systems. Delivering 310 lb-in torque, this unit is designed to drive large dampers up to approximately 77 sq. ft. in commercial air handling units. Operating on a 24V AC/DC power supply, it features a robust all-metal housing and dual auxiliary switches that are independently adjustable for motor-end position signaling. As a plenum-rated actuator, it meets strict fire safety codes for installation within ceiling spaces and air ducts without additional conduit, streamlining field labor for technicians.
Built with synchronous motor technology, the GIB136.1P maintains constant travel timing regardless of load, ensuring reliable 3-position or floating performance. The self-centering shaft coupling accommodates various shaft diameters and minimizes mechanical stress on the damper linkage, preventing premature wear. For manual commissioning or emergency overrides, the integrated manual override button allows for quick positioning without power. The NEMA 2/IP54 enclosure provides protection in typical mechanical room environments, while the precabled 3-foot 18 AWG leads simplify HVAC actuator wiring for faster field integration.
Key Benefits for Technicians:- 310 lb-in High-Torque Performance: Provides significant force to manage high-static pressure dampers and large air volume control.
- Dual Adjustable Auxiliary Switches: Enables precise end-switch signaling for interlocking fans or monitoring damper positions accurately.
- Self-Centering Shaft Adapter: Ensures a secure, non-slip attachment to damper shafts while reducing installation time and alignment errors.
- Plenum-Rated Housing: Simplifies compliance for installs in return air plenums and complex ceiling environments.
- Non-Spring Return Reliability: Ideal for applications where the damper should maintain its last position during a power loss.
- What is the typical runtime for the GIB136.1P? This actuator features a standard runtime of approximately 125 seconds at 60Hz for 90-degree rotation, ensuring smooth control without water hammer in air systems.
- Can this actuator be used for 0-10V modulating control? No, the GIB136.1P is specifically designed for 3-position (floating) control. For proportional modulation, a different Siemens OpenAir GIB series model would be required.
- Is it compatible with both round and square shafts? Yes, the self-centering universal coupling accepts round shafts from 3/8" to 1" and square shafts from 1/4" to 5/8".
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
