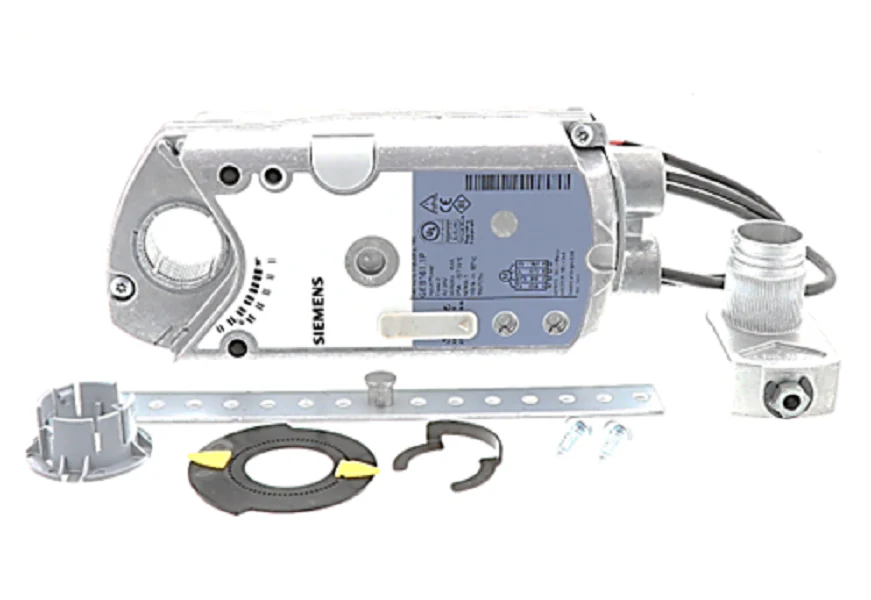

Siemens Building Technology GEB161.1P Actuator
The Siemens GEB161.1P is a heavy-duty non-spring return actuator engineered for precise modulating control in commercial HVAC systems. Delivering 132 lb-in torque, this 24V damper actuator is built for high-demand constant or variable air volume (VAV) applications, including exhaust, return air, and bypass dampers. Featuring a brushless motor and stall protection, it ensures long-term reliability without the risk of motor burnout at end-of-stroke. The integrated plenum-rated cable simplifies installation in ceiling spaces, maintaining compliance with fire and smoke safety codes. Technicians will value the self-centering shaft coupling and manual override button, which allow for rapid mechanical alignment and testing before full power-up. With 0-10 Vdc control and built-in position feedback, this OpenAir series unit provides the granular positioning required for modern building automation systems seeking maximum energy efficiency and airflow accuracy.
Key Benefits- 132 lb-in (15 Nm) torque supports a wide range of damper sizes for air handling and terminal units.
- Compatible with 24 Vac/dc power supplies for versatile field integration.
- 0-10 Vdc modulating signal with integrated position feedback for real-time monitoring.
- Advanced self-centering shaft coupling accommodates various shaft diameters without extra hardware.
- Plenum-rated construction allows for direct installation in environmental air spaces.
What happens to the damper position if power is lost?
As a non-spring return actuator, the GEB161.1P will hold its last position upon power loss, making it suitable for applications where fail-safe closure is handled by other system components.
Can I manually adjust the damper during commissioning?
Yes, the unit features a manual override button that disengages the gear train, allowing for quick mechanical positioning and range adjustment without electrical power.
Is the motor protected from burnouts if the damper jams?
The brushless motor design includes electronic stall protection across the entire rotation range, ensuring the actuator stops safely without damaging the internal gears or motor windings.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
