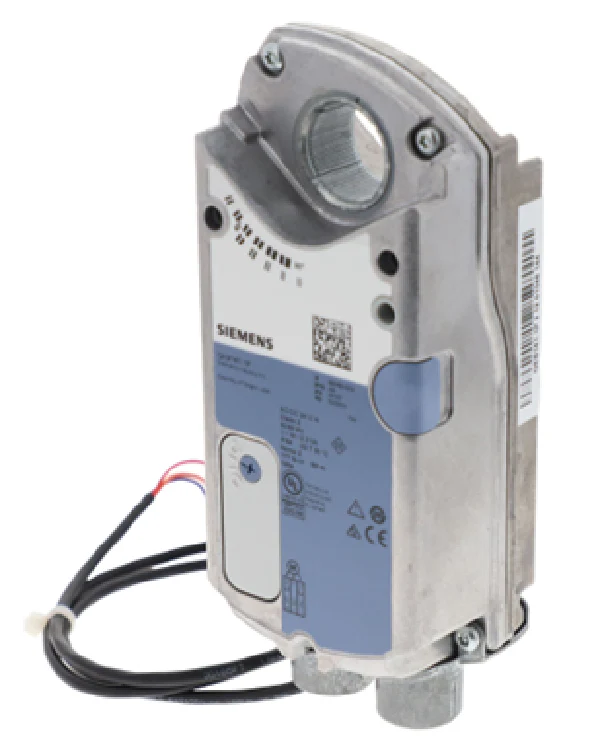

Siemens Building Technology GEB141.1P Actuator
The Siemens GEB141.1P is a high-torque non-spring return actuator designed as the direct technical successor to the legacy GEB131.1P series. Engineering for commercial HVAC systems, this OpenAir electronic actuator provides precise control for dampers in air handling units and VAV terminals. Operating on a 24 VAC power supply, it features versatile 2-point and 3-point control (on/off and floating) logic, making it a standard choice for contractors managing building automation upgrades. With a robust 132 lb-in torque (15 Nm) rating and a self-centering shaft coupling, this unit handles dampers up to approximately 18 sq. ft. while ensuring synchronous motor timing for reliable positioning.
Key Benefits:
- Universal Shaft Compatibility: The self-centering shaft adapter accommodates round shafts from 1/4" to 3/4" and square shafts from 1/4" to 1/2", reducing the need for additional mounting hardware.
- Enhanced Durability: Features a die-cast aluminum alloy enclosure and brushless motor technology with stall protection to extend the service life in demanding mechanical environments.
- Precision Control: Delivers consistent 90-degree angular rotation with a positioning time of 125 seconds at 60 Hz, ensuring smooth dampening without the overshoot common in lower-tier actuators.
- Plenum Rated Integration: Comes standard with a 3-foot precabled plenum-rated cable (18 AWG), meeting strict building codes for installation within air handling spaces.
- Manual Override: Includes an integrated manual override button to allow technicians to position the damper during commissioning or power loss.
Common Questions:
Is the GEB141.1P a direct replacement for the GEB131.1P?
Yes, the GEB141.1P is the updated version of the GEB131.1P. It maintains the same footprint and non-spring return functionality while offering improved internal components.
Does this actuator support 0-10V modulating signals?
No, the Siemens GEB141.1P is specifically designed for 2-point / 3-point floating control. For modulating 0-10V applications, the GEB161.1P would be the appropriate technical alternative.
What happens during a power failure?
Being a non-fail safe (non-spring return) motor, the actuator will maintain its last known position in the event of a power loss until power is restored or the manual override is used.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
