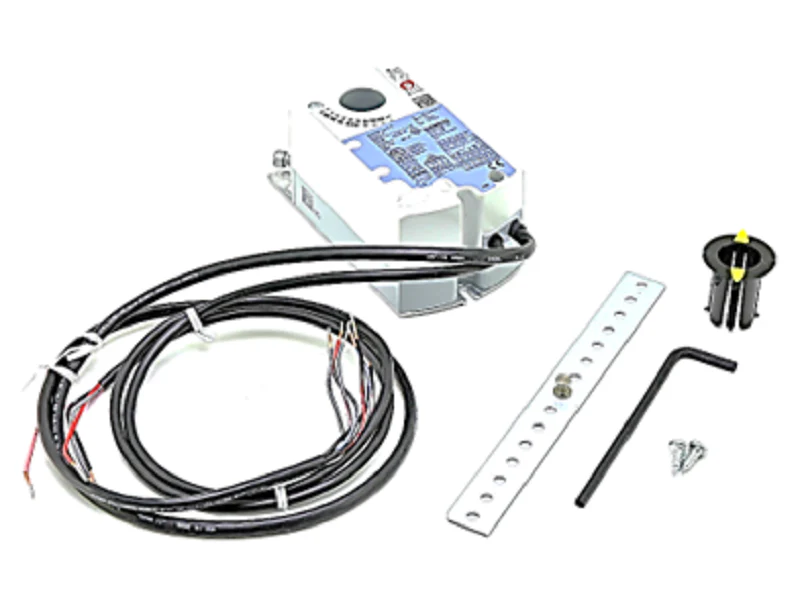

Siemens Building Technology GDE166.1P Actuator
The Siemens GDE166.1P is a high-performance OpenAir damper actuator designed for precise modulating control in HVAC systems. Operating on a 24V AC/DC power supply, this non-spring return actuator delivers 44 lb-in (5 Nm) of torque, making it a reliable choice for constant or variable air volume (VAV) applications. It accepts a standard 0-10 VDC control signal and provides a proportional 0-10 VDC feedback signal for real-time position monitoring. Engineered for durability, the Siemens GDE166.1P features a robust synchronous motor that ensures accurate positioning with a 90-second runtime for 90-degree rotation. The unit comes equipped with two independently adjustable auxiliary switches and a 3-foot plenum-rated cable, facilitating streamlined integration into air handling units and terminal boxes. Its self-centering shaft adapter accommodates 3/8-inch to 5/8-inch diameters, eliminating the need for complex linkages while maintaining a NEMA 2/IP54 rating for protection against environmental debris.
Key Benefits
- Precision Control: Utilizes a 0-10Vdc modulating signal for accurate air volume management and system efficiency.
- Integrated Feedback: Features a 0-10Vdc output for remote monitoring of the damper actuator position without additional sensors.
- Dual Auxiliary Switches: Includes two built-in switches that are independently adjustable to manage process sequencing or status indication.
- Industrial Durability: Rated for a minimum of 60,000 full-stroke cycles, reducing maintenance requirements in VAV box installations.
- Easy Installation: The direct-coupled design and plenum-rated cabling allow for fast mounting in tight mechanical spaces.
Common Questions
How do I change the rotation direction on the GDE166.1P?Rotation direction is determined by the orientation of the actuator on the damper shaft. To reverse the action (clockwise or counterclockwise), simply flip the actuator over before securing the self-centering shaft adapter. Ensure the 0-90 degree position indicator matches the physical damper orientation.
Can this actuator be used in return air plenum environments?Yes, the Siemens GDE166.1P is specifically designed with a plenum-rated jacket on its 3-foot connection cable, meeting UL requirements for installation within environmental air spaces.
What happens if the 0-10V control signal is lost?In the event of a control signal loss (but power remains), the actuator will move to its zero-reference position. As a non-spring return (NSR) model, it will maintain its last position if the main 24V power supply is interrupted.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
