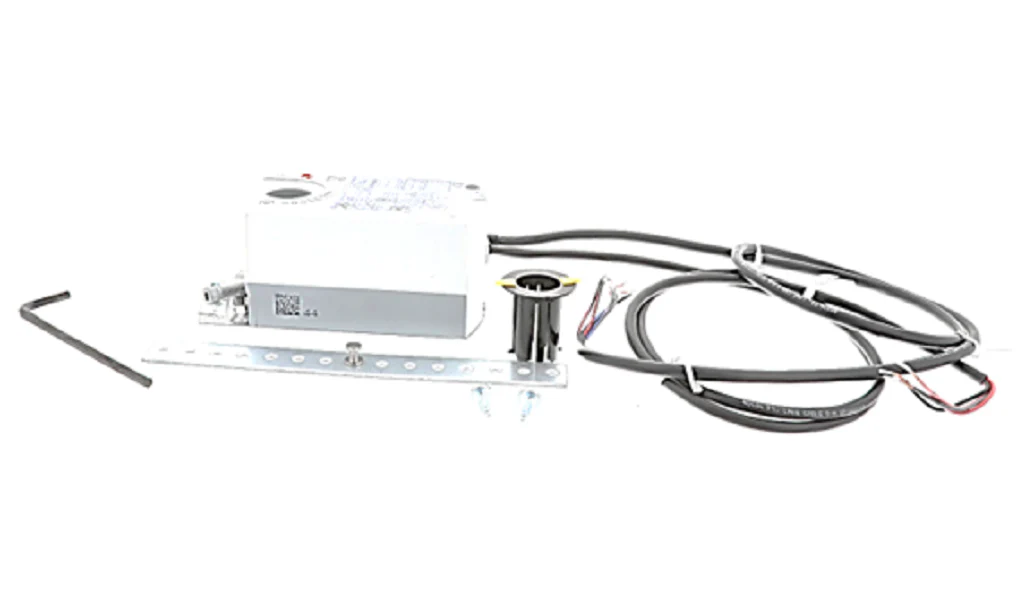

Siemens Building Technology GDE164.1P Actuator
The Siemens GDE164.1P is a heavy-duty non-spring return rotary damper actuator designed for precise modulating control in commercial HVAC systems. Delivering 44 lb-in (5 Nm) torque, this OpenAir series unit is engineered for 24V AC/DC operation and utilizes a 0-10VDC control signal to provide responsive positioning for constant or variable air volume (VAV) applications. The GDE164.1P features built-in adjustable span and offset potentiometers, allowing technicians to calibrate the start point (0-5 VDC) and operating range (2-30 VDC) to meet specific site requirements. For advanced monitoring and automation, this model includes two independently adjustable auxiliary switches and 0-10VDC position feedback. Constructed with a plenum-rated housing and a 3-foot pre-cabled lead, it supports rapid installation on shafts ranging from 3/8" to 5/8" diameter. The synchronous motor technology ensures a consistent 90-second run time (at 60 Hz) while maintaining a low noise floor below 35 dBA for quiet operation in occupied spaces.
Key Benefits- Precise Signal Customization: Integrated potentiometers allow for external offset and span adjustment to sequence multiple actuators or limit rotation electronically.
- Enhanced Monitoring: Dual dual auxiliary switches provide dry contact points for end-stop confirmation or auxiliary equipment interlocking.
- Installation Versatility: Direct-coupled design with a universal mounting bracket simplifies retrofitting on various damping systems without additional linkages.
- Reliable Performance: Stall protection throughout the 95-degree rotation range prevents motor burnout, even if the damper becomes obstructed.
- Quiet Operation: Designed for high-comfort environments with a noise level rating under 35 dBA during active positioning.
What is the difference between the GDE164.1P and GDE161.1P?
The GDE164.1P includes dual auxiliary switches and adjustable span/offset capabilities, features that are not standard on the GDE161.1P model.
Can this actuator be used in return air plenums?
Yes, this unit is plenum rated for installation in ceiling spaces and air handling plenums according to standard UL certifications.
Does it return to a fail-safe position upon power loss?
No, this is a non-spring return (NSR) actuator. It will maintain its last position in the event of a total power failure, though it will return to the zero position if only the control signal is lost.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $238.94
-65%$238.94
$83.63Siemens Building Technology GDE164.1P Actuator
The Siemens GDE164.1P is a heavy-duty non-spring return rotary damper actuator designed for precise modulating control in commercial HVAC systems. Delivering 44 lb-in (5 Nm) torque, this OpenAir series unit is engineered for 24V AC/DC operation and utilizes a 0-10VDC control signal to provide responsive positioning for constant or variable air volume (VAV) applications. The GDE164.1P features built-in adjustable span and offset potentiometers, allowing technicians to calibrate the start point (0-5 VDC) and operating range (2-30 VDC) to meet specific site requirements. For advanced monitoring and automation, this model includes two independently adjustable auxiliary switches and 0-10VDC position feedback. Constructed with a plenum-rated housing and a 3-foot pre-cabled lead, it supports rapid installation on shafts ranging from 3/8" to 5/8" diameter. The synchronous motor technology ensures a consistent 90-second run time (at 60 Hz) while maintaining a low noise floor below 35 dBA for quiet operation in occupied spaces.
Key Benefits- Precise Signal Customization: Integrated potentiometers allow for external offset and span adjustment to sequence multiple actuators or limit rotation electronically.
- Enhanced Monitoring: Dual dual auxiliary switches provide dry contact points for end-stop confirmation or auxiliary equipment interlocking.
- Installation Versatility: Direct-coupled design with a universal mounting bracket simplifies retrofitting on various damping systems without additional linkages.
- Reliable Performance: Stall protection throughout the 95-degree rotation range prevents motor burnout, even if the damper becomes obstructed.
- Quiet Operation: Designed for high-comfort environments with a noise level rating under 35 dBA during active positioning.
What is the difference between the GDE164.1P and GDE161.1P?
The GDE164.1P includes dual auxiliary switches and adjustable span/offset capabilities, features that are not standard on the GDE161.1P model.
Can this actuator be used in return air plenums?
Yes, this unit is plenum rated for installation in ceiling spaces and air handling plenums according to standard UL certifications.
Does it return to a fail-safe position upon power loss?
No, this is a non-spring return (NSR) actuator. It will maintain its last position in the event of a total power failure, though it will return to the zero position if only the control signal is lost.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
