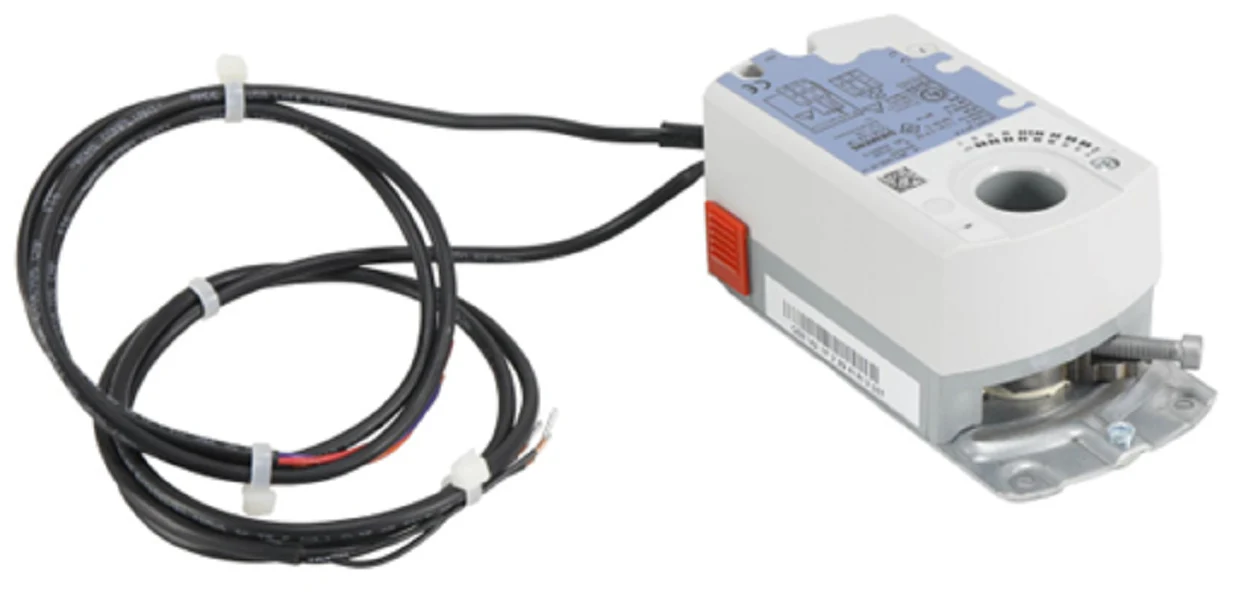

Siemens Building Technology GDE142.1P Actuator
The Siemens GDE142.1P Actuator is a professional-grade 24V floating control damper actuator engineered for precise air distribution control in commercial HVAC systems. Delivering 44 lb-in torque, this non-spring return (NSR) actuator is the standard choice for small to medium dampers where fail-safe positioning is not required. It supports three-wire floating control and two-position signals, ensuring seamless integration with Siemens OpenAir platforms and third-party building automation systems. Designed for longevity in heavy-duty cycles, the GDE142.1P features a robust gear train and a self-centering shaft adapter that accommodates round shafts up to 5/8 inch or square shafts up to 1/2 inch. This HVAC damper motor provides a manual override for simplified commissioning and maintenance, making it an ideal field-replacement or new installation component for air handlers and terminal units. Its low power consumption and high positioning accuracy ensure optimal airflow management and system efficiency.
Key Benefits:- 44 lb-in torque provides reliable modulation for dampers up to approximately 10 square feet.
- Non-spring return design offers stable, high-resolution positioning without the complexity of mechanical fail-safes.
- Universal shaft adapter facilitates fast installation on various damper shaft sizes and shapes.
- Compatible with 24VAC/DC power supplies and standard floating control signals.
- Rugged construction minimizes mechanical play and ensures consistent airflow balancing over time.
What is the typical runtime for this actuator?
The Siemens GDE142.1P provides a nominal stroke time of 125 seconds at 60 Hz for 90-degree rotation, allowing for precise incremental adjustments in air volume.
Can I manually adjust the damper position?
Yes, the unit features a manual override button that disengages the gear train, allowing technicians to manually position the damper during commissioning or system testing.
Does this model include auxiliary switches?
This specific model is a standard floating actuator; however, it is compatible with Siemens' line of add-on auxiliary switch kits for end-stop signaling if required by the sequence of operations.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $148.11
-65%$148.11
$51.84Siemens Building Technology GDE142.1P Actuator
The Siemens GDE142.1P Actuator is a professional-grade 24V floating control damper actuator engineered for precise air distribution control in commercial HVAC systems. Delivering 44 lb-in torque, this non-spring return (NSR) actuator is the standard choice for small to medium dampers where fail-safe positioning is not required. It supports three-wire floating control and two-position signals, ensuring seamless integration with Siemens OpenAir platforms and third-party building automation systems. Designed for longevity in heavy-duty cycles, the GDE142.1P features a robust gear train and a self-centering shaft adapter that accommodates round shafts up to 5/8 inch or square shafts up to 1/2 inch. This HVAC damper motor provides a manual override for simplified commissioning and maintenance, making it an ideal field-replacement or new installation component for air handlers and terminal units. Its low power consumption and high positioning accuracy ensure optimal airflow management and system efficiency.
Key Benefits:- 44 lb-in torque provides reliable modulation for dampers up to approximately 10 square feet.
- Non-spring return design offers stable, high-resolution positioning without the complexity of mechanical fail-safes.
- Universal shaft adapter facilitates fast installation on various damper shaft sizes and shapes.
- Compatible with 24VAC/DC power supplies and standard floating control signals.
- Rugged construction minimizes mechanical play and ensures consistent airflow balancing over time.
What is the typical runtime for this actuator?
The Siemens GDE142.1P provides a nominal stroke time of 125 seconds at 60 Hz for 90-degree rotation, allowing for precise incremental adjustments in air volume.
Can I manually adjust the damper position?
Yes, the unit features a manual override button that disengages the gear train, allowing technicians to manually position the damper during commissioning or system testing.
Does this model include auxiliary switches?
This specific model is a standard floating actuator; however, it is compatible with Siemens' line of add-on auxiliary switch kits for end-stop signaling if required by the sequence of operations.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
