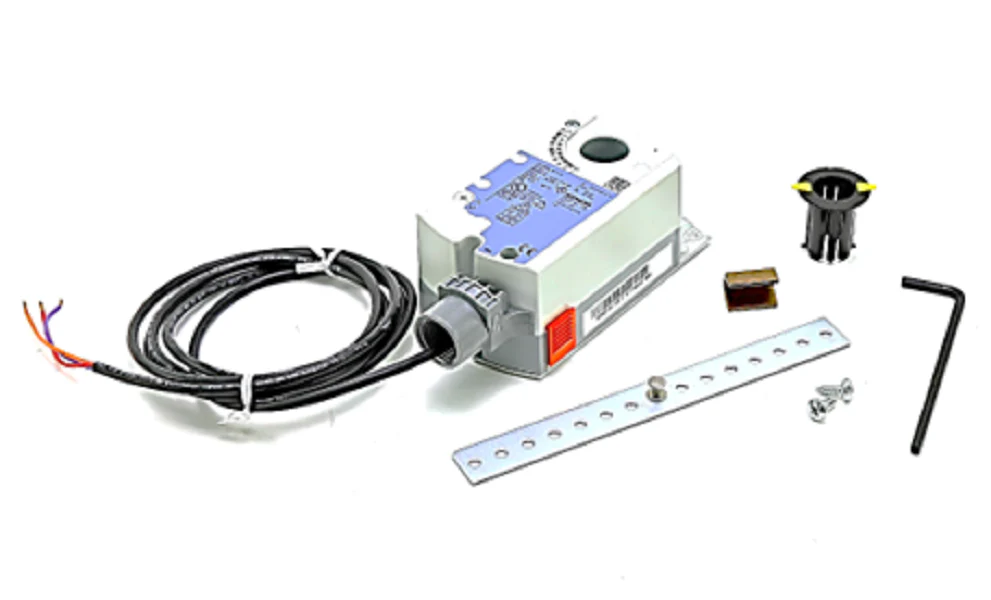

Siemens Building Technology GDE141.1Q Actuator
Upgrade your air handling systems with the Siemens OpenAir GDE141.1Q, a robust non-spring return actuator engineered for low-torque VAV applications and small dampers. This unit delivers 44 lb-in torque and features versatile 2-position/floating control logic, ensuring precise airflow management in commercial HVAC environments. Operating on a standard 24V AC/DC power supply, the GDE141.1Q is designed for high-cycle reliability, rated for up to 100,000 full strokes and 5 million repositions. The plenum-rated construction and integrated 6ft cable simplify field wiring, while the compact footprint allows for installation in tight mechanical spaces. With a 90-second run time at 60 Hz and NEMA 2 protection, this direct-coupled electronic actuator is the industry standard for contractors seeking a dependable replacement damper motor that maintains consistent performance under varying static pressures.
Key Benefits- Optimized Efficiency: Features synchronous motor technology with low power consumption (1.0W) to reduce operational costs.
- Flexible Control: Supports both 2-position (on/off) and floating control signals for various HVAC sequences.
- Durable Construction: NEMA 2 (IP54) rated housing is built for demanding environments and is plenum-rated for ceiling installations.
- Easy Installation: Pre-cabled with 6ft leads and includes a manual override and clear position indicator for rapid commissioning.
- Precision Torque: Delivers a consistent 44 lb-in (5 Nm) for small dampers and VAV boxes without overstressing components.
Is the GDE141.1Q compatible with standard 24V control systems?
Yes, it is designed to work with most 24V AC or DC controllers using three-wire floating or two-position control signals.
What is the maximum rotation for this actuator?
The unit has a nominal 90-degree angle of rotation, with a mechanical stop limit of 95 degrees to ensure full damper closure.
Can this be mounted on different shaft sizes?
The self-centering shaft adapter fits round shafts from 3/8" to 5/8" (8mm to 16mm) and square shafts from 1/4" to 1/2" (6mm to 13mm).
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
