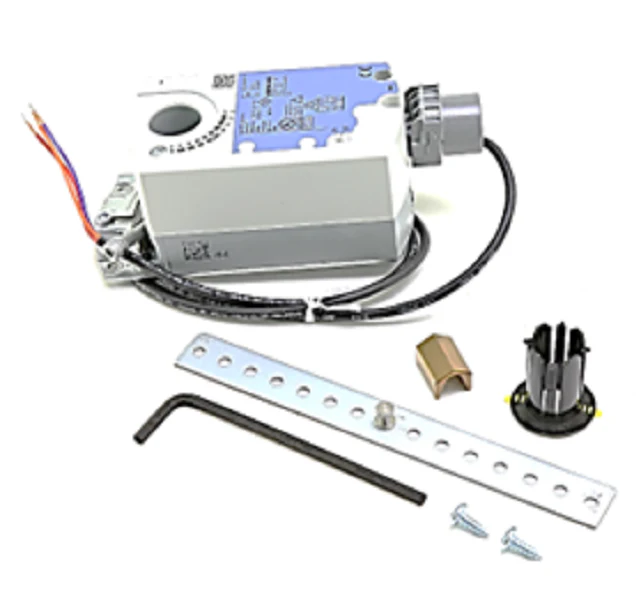

Siemens Building Technology GDE141.1P Actuator
The Siemens GDE141.1P is a high-performance OpenAir electronic damper actuator designed for non-spring return (NSR) operation in terminal units and small damper applications. Delivering a robust 44 lb-in torque, this 24V AC/DC unit provides precise 2-position/floating control for VAV boxes, zone dampers, and air handling units. Its plenum-rated construction and compact footprint make it ideal for tight mechanical spaces. The brushless DC motor technology ensures quiet operation (at less than 35 dBA) and long-term reliability by eliminating common brush-wear failure points. Contractors value the GDE141.1P for its 90-second runtime at 60Hz and the easy-to-read position indicator which simplifies commissioning. Integrated mechanical range adjustment allows you to limit the angle of rotation without additional hardware, while the pre-mounted 3-foot plenum cable reduces field wiring time. Whether you are performing a retrofit or a new HVAC digital control installation, this direct-coupled actuator mounts easily to round shafts from 3/8" to 5/8" or square shafts up to 1/2".
Key Benefits- Efficient Torque Delivery: 44 lb-in (5 Nm) engine provides consistent force for low-torque HVAC dampers.
- Quiet Performance: Operates at noise levels below 35 dBA, ensuring no acoustic interference in occupied spaces.
- Fast Installation: Direct-coupled design with a self-centering shaft adapter minimizes mechanical setup time.
- Plenum Rated: UL listed for use in environmental air spaces, meeting strict building safety codes.
- Manual Override: Features a simple manual declutch button for emergency positioning or testing.
Can the rotation direction be reversed?
Yes, the direction of rotation (clockwise or counterclockwise) can be adjusted using the internal switch or by reversing the control signal wiring depending on your specific damper configuration.
What wire gauge is recommended for this actuator?
The unit comes pre-cabled with 18 AWG plenum-rated wiring. For field extensions, 14 to 22 AWG copper wire is standard, keeping in mind voltage drop for long runs.
Does this unit have feedback capability?
The GDE141.1P is a standard floating control model and does not include 0-10V feedback. If position feedback is required, a modulating sequence or a model with an auxiliary switch should be selected.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
