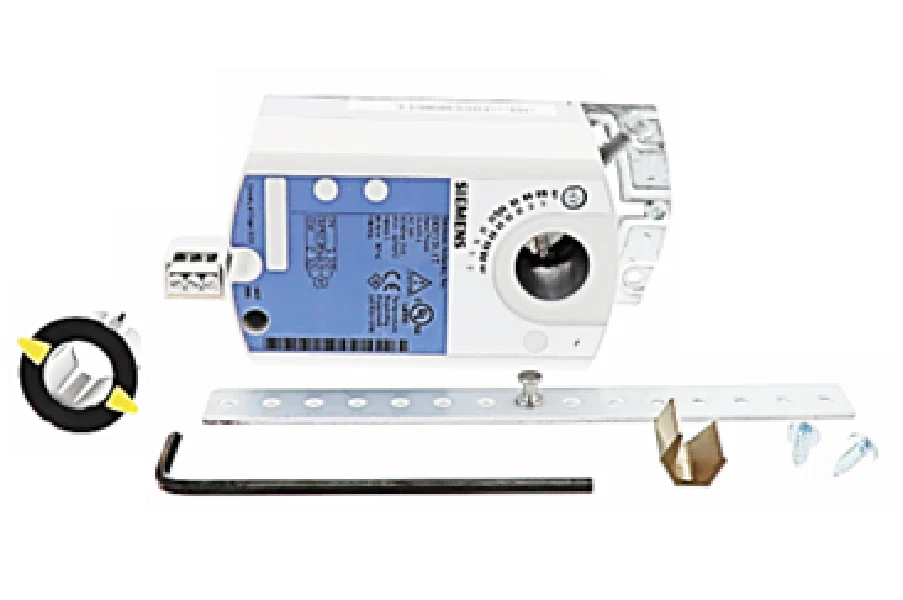

Siemens Building Technology GDE131.1T Control
The Siemens GDE131.1T is a high-performance OpenAir electronic damper actuator engineered for precise control in HVAC ventilation systems. This non-spring return actuator delivers 44 lb-in (5 Nm) of torque, making it a reliable solution for small to medium-sized damper applications, including VAV box control. Designed for 24V AC/DC operation, this unit utilizes 3-position floating control to ensure accurate positioning during the 90-second nominal runtime. The integrated terminal strip simplifies field wiring for contractors, eliminating the need for separate cable assemblies and facilitating faster installations in the field. Built with a NEMA 1 rated enclosure and a synchronous motor, the GDE131.1T provides consistent damper automation for both constant and variable air volume systems. Its compact design features a manual override and a visible position indicator, allowing for straightforward commissioning and troubleshooting without specialized tools.
- Efficient Torque Performance: Delivers 44 lb-in (5 Nm) of steady rotary damper torque for light-duty commercial applications.
- Contractor-Friendly Wiring: Features a dedicated terminal strip connection to streamline HVAC actuator wiring on site.
- Quiet Operation: Operates at less than 35 dBA, ensuring acoustic comfort in noise-sensitive environments.
- Flexible Mounting: Direct-coupled design handles round shafts up to 5/8" and square shafts up to 1/2".
- Robust Reliability: Capable of 100,000 full-stroke cycles and 5 million repositions for long-term system stability.
Common Questions
What is the runtime for the Siemens GDE131.1T?
The unit features a runtime of 90 seconds at 60 Hz and 108 seconds at 50 Hz for a full 90-degree rotation.
Can I manually adjust the damper position if power is lost?
Yes, the actuator includes a manual override button that allows technicians to reposition the damper without power by disengaging the gear train.
What type of control signal does this actuator require?
This model is designed specifically for 3-position floating control (24V AC/DC) and does not support 0-10V modulating signals.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
