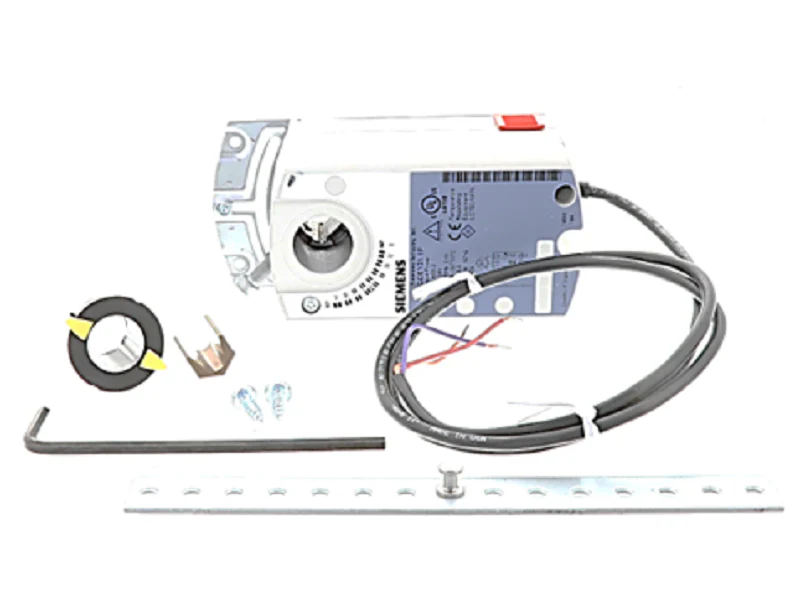

Siemens Building Technology GDE131.1P Actuator
The Siemens GDE131.1P is a high-performance OpenAir electronic damper actuator designed for non-spring return applications within commercial HVAC systems. Operating on 24V AC/DC, this rotary actuator delivers 44 lb-in (5 Nm) of torque, making it ideal for controlling dampers in VAV terminals, small AHUs, and local ventilation units. The GDE131.1P supports three-position control (floating) and two-position on/off signaling, providing versatile integration with various building automation controllers. Engineered for plenum-rated installations, it features a pre-wired cable for streamlined field wiring and a manual override button for simplified commissioning and troubleshooting. Its compact footprint allows for installation in tight mechanical spaces, while the self-centering shaft adapter ensures a secure fit on round or square damper shafts. This direct-coupled actuator is a standard choice for contractors requiring reliable damper motor performance and precise air volume regulation.
Key Benefits for Contractors
- Efficient three-position floating control ensures precise damper positioning for optimized airflow.
- UL listed plenum rating allows for safe installation in ceiling spaces and air handling plenums.
- The non-spring return design reduces power consumption during stationary periods.
- Fast 125-second run time balances HVAC actuator responsiveness with system stability.
- Robust Siemens OpenAir engineering provides high reliability in demanding commercial environments.
Common Installation Questions
How do I configure the GDE131.1P for floating versus on/off control?
The control mode is determined by the wiring configuration to the 24V power supply and controller outputs. Use terminal connections for clockwise or counter-clockwise rotation in floating applications, or a single-pole switch for on/off operation.
Can this actuator be mounted on any damper shaft?
The Siemens GDE131.1P features a universal self-centering adapter that accommodates round shafts up to 5/8" or square shafts up to 1/2", ensuring minimal shaft slippage.
Is manual positioning possible during a power loss?
While this is a non-spring return actuator, it includes a manual override button that disengages the gear train, allowing technicians to manually position the damper during setup or maintenance.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
