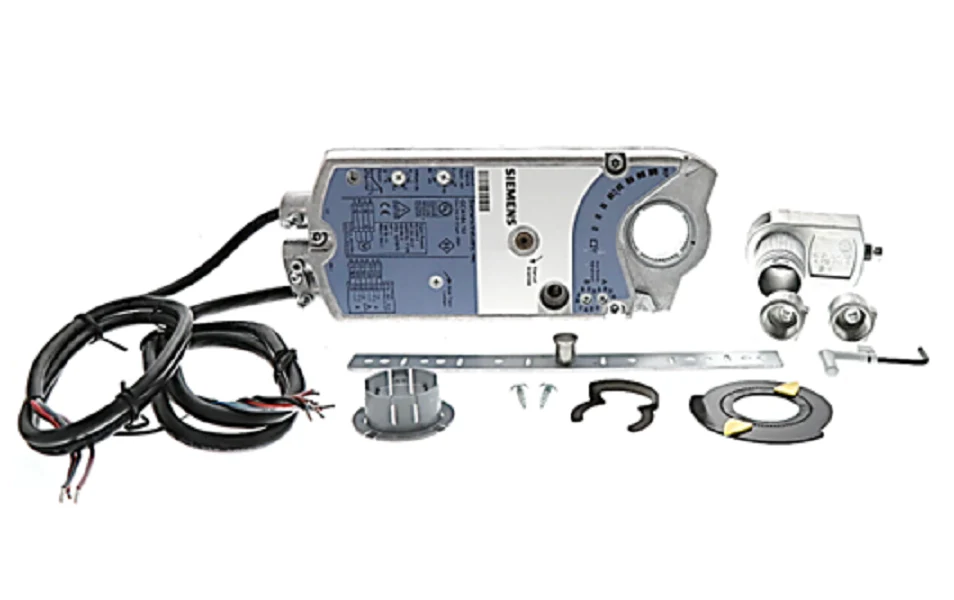

Siemens Building Technology GCA164.1U Actuator
The Siemens GCA164.1U Actuator is a heavy-duty modulating spring return damper actuator designed for HVAC systems requiring high-torque performance and reliable fail-safe operation. Built with a rugged all-metal housing, this OpenAir GCA Series drive delivers 160 lb-in torque (18 Nm) to manage large dampers in VAV systems, mixed air units, and exhaust applications. It operates on 24VAC/DC power and accepts a 0-10 VDC control signal, providing precise proportional control with built-in position feedback. For complex sequencing, the GCA164.1U features dual auxiliary switches and adjustable start and span (offset/span) to customize the response range. Its brushless DC motor technology ensures stall protection and quiet operation, while the patented self-centering shaft coupling accommodates shafts up to 1 inch, simplifying field installation for service contractors. This direct-coupled actuator is engineered for a 90-second runtime and a rapid 15-second spring return, making it a critical component for building automation and air volume control.
Key Benefits:- High Torque Capacity: Delivers 160 lb-in (18 Nm) of force, suitable for large dampers and high-pressure HVACR environments.
- Fail-Safe Security: Mechanical spring return ensures dampers reach a safe position during power loss in just 15 seconds.
- Precision Control: Modulating 0-10 VDC input with adjustable span and offset allows for fine-tuned air flow management.
- Durability: NEMA 2 / IP54 rated die-cast aluminum housing protects internal components in demanding commercial mechanical rooms.
- Flexible Integration: Integrated dual auxiliary switches (adjustable) provide easy signaling for end-of-travel status or sequence proofing.
What is the maximum shaft size the GCA164.1U can accommodate?
The patented self-centering shaft coupling is designed to grip round or square shafts up to 1 inch (25 mm) in diameter, ensuring a secure, slip-free connection.
Does this model include feedback for a BMS?
Yes, the GCA164.1U provides a 2-10 VDC position feedback signal, allowing your building management system to monitor the exact damper position in real-time.
Can the auxiliary switches be adjusted in the field?
Absolutely. The dual auxiliary switches are independently adjustable, allowing technicians to set specific trigger points for external equipment or status monitoring.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
