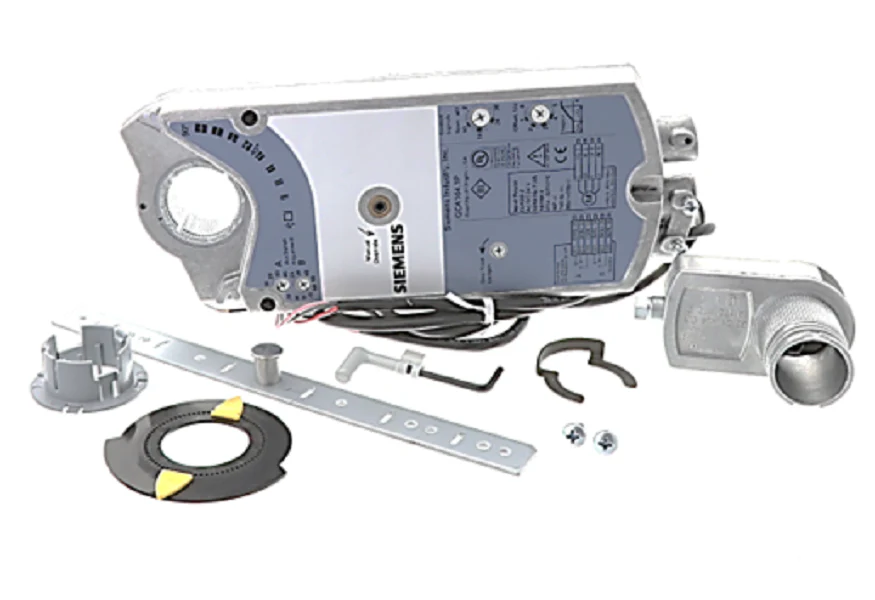

Siemens Building Technology GCA164.1P Actuator
The Siemens Building Technology GCA164.1P Actuator is a heavy-duty modulating spring return actuator engineered for precise control in high-torque HVAC applications. Delivering 160 lb-in torque, this OpenAir electronic actuator is built to handle large dampers in return air, exhaust, and face-and-bypass systems. Operating on 24VAC/DC, the unit utilizes a 0-10VDC control signal with adjustable span and offset functionality for field-calibrated performance. The integrated dual auxiliary switches provide immediate feedback or pilot duty for peripheral sequencing. Designed for fail-safe reliability, the bi-directional spring return ensures dampers close or open upon losing power. The 3-foot plenum cable and NEMA 2 die-cast aluminum housing guarantee durability within mechanical rooms and air handling units. High-efficiency brushless DC motor technology prevents stalling, while the self-centering shaft coupling accommodates shafts up to 1 inch, simplifying retrofit and new construction deployments for contractors requiring industrial-grade damper actuator performance.
Key Benefits- 160 lb-in (18 Nm) Torque: Robust power output for taxing building technology applications and large-scale air handlers.
- Fail-Safe Spring Return: Reliable mechanical return to the default position during power interruptions.
- Dual Auxiliary Switches: Factory-installed switches allow for easy integration of status feedback or interlock circuits.
- Modulating 0-10VDC Control: Provides smooth, proportional air flow adjustment for optimized VAV system efficiency.
- Plenum-Rated Materials: Includes a 3-foot 18 AWG plenum cable suitable for installation in air ducts and ceiling spaces.
Is the Siemens GCA164.1P compatible with both 24VAC and 24VDC systems?
Yes, this actuator is designed for universal 24 VAC or 24 VDC power supplies, making it versatile for various control panels and HVAC automation setups.
What diameter damper shafts can this actuator accommodate?
The patented self-centering shaft coupling is engineered to secure dampers with diameters ranging from 3/8-inch to 1-inch (8 to 25.6 mm).
Can the auxiliary switches be adjusted in the field?
Yes, the dual auxiliary switches are independently adjustable between 0 and 90 degrees to meet specific operational logic and feedback requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
