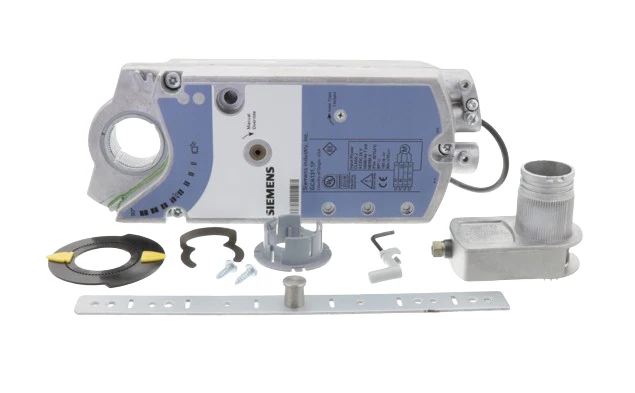

Siemens Building Technology GCA131.1P Actuator
As a veteran tech, I know you need hardware that handles the heavy lifting without the guesswork. The Siemens GCA131.1P is a workhorse in the OpenAir actuator lineup, engineered for high-torque applications requiring a reliable spring return damper actuator. Delivering a stout 160 lb-in torque (18 Nm), this unit is purpose-built for large HVAC dampers and high-performance air volume control systems. It operates on 24V AC/DC and utilizes a floating control signal (3-position), making it compatible with most standard building automation controllers.
Installation efficiency is baked into the design. The plenum rated housing ensures code compliance in overhead spaces, while the patented self-centering shaft coupling eliminates the typical headaches of side-loading and shaft slippage. Whether you are managing return air dampers, mixed air systems, or bypass dampers, the bi-directional fail-safe ensures the system returns to its critical position during power loss. With a 90-second run time and an integrated manual override, you have total control during commissioning and maintenance cycles.
Key Benefits for the Contractor:- Heavy-Duty Torque: 160 lb-in (18 Nm) rating handles larger damper areas and higher static pressures without stalling.
- Floating Control Logic: Reliable 3-position (floating) signal for precise damper positioning in VAV and constant volume systems.
- Plenum Rated Safety: Durable die-cast aluminum housing meets UL requirements for installation in environmental air spaces.
- Self-Centering Coupling: Significant reduction in installation time by ensuring the actuator stays centered on the damper shaft.
- Fail-Safe Protection: Mechanical spring return provides a definitive fail position for critical air management.
- What is the maximum shaft size supported? The self-centering adapter fits standard round shafts from 3/8" to 1" and square shafts from 1/4" to 5/8".
- Can this be used for fire and smoke applications? No, this is a standard control actuator. Use the GMA or GIB series specifically rated for fire/smoke dampers.
- Does it include auxiliary switches? The GCA131.1P model does not include internal switches; look for the GCA136.1P if you require position feedback or auxiliary switching.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $370.76
-65%$370.76
$129.77Siemens Building Technology GCA131.1P Actuator
As a veteran tech, I know you need hardware that handles the heavy lifting without the guesswork. The Siemens GCA131.1P is a workhorse in the OpenAir actuator lineup, engineered for high-torque applications requiring a reliable spring return damper actuator. Delivering a stout 160 lb-in torque (18 Nm), this unit is purpose-built for large HVAC dampers and high-performance air volume control systems. It operates on 24V AC/DC and utilizes a floating control signal (3-position), making it compatible with most standard building automation controllers.
Installation efficiency is baked into the design. The plenum rated housing ensures code compliance in overhead spaces, while the patented self-centering shaft coupling eliminates the typical headaches of side-loading and shaft slippage. Whether you are managing return air dampers, mixed air systems, or bypass dampers, the bi-directional fail-safe ensures the system returns to its critical position during power loss. With a 90-second run time and an integrated manual override, you have total control during commissioning and maintenance cycles.
Key Benefits for the Contractor:- Heavy-Duty Torque: 160 lb-in (18 Nm) rating handles larger damper areas and higher static pressures without stalling.
- Floating Control Logic: Reliable 3-position (floating) signal for precise damper positioning in VAV and constant volume systems.
- Plenum Rated Safety: Durable die-cast aluminum housing meets UL requirements for installation in environmental air spaces.
- Self-Centering Coupling: Significant reduction in installation time by ensuring the actuator stays centered on the damper shaft.
- Fail-Safe Protection: Mechanical spring return provides a definitive fail position for critical air management.
- What is the maximum shaft size supported? The self-centering adapter fits standard round shafts from 3/8" to 1" and square shafts from 1/4" to 5/8".
- Can this be used for fire and smoke applications? No, this is a standard control actuator. Use the GMA or GIB series specifically rated for fire/smoke dampers.
- Does it include auxiliary switches? The GCA131.1P model does not include internal switches; look for the GCA136.1P if you require position feedback or auxiliary switching.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
