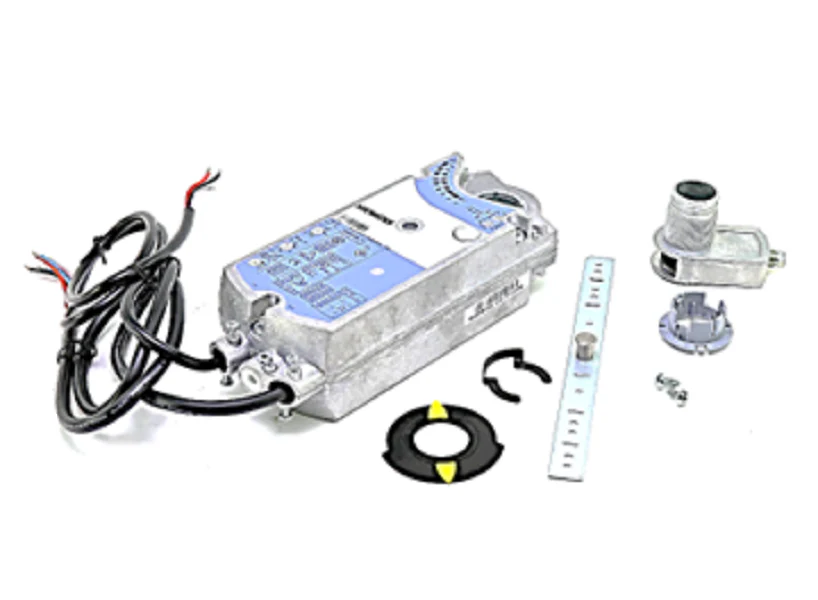

Siemens Building Technology GBB164.1U Actuator
As a technician, you know that the Siemens Building Technology GBB164.1U Actuator is a heavy-duty workhorse designed for high-torque applications. This non-spring return (NSR) actuator delivers 221 lb-in of torque, making it the standard choice for larger dampers and high-load air handling systems. Operating on 24VAC/DC power, it utilizes a 0-10Vdc modulating control signal for precision placement. One of the standout features of the GBB164.1U is the adjustable span and offset capability (0..5 VDC span, 2..30 VDC offset), allowing you to fine-tune the stroke to match specific system requirements. Built with a NEMA 2 (IP54) enclosure and featuring a self-centering shaft coupling, this OpenAir damper actuator ensures a secure, no-slip connection that minimizes side loading on the damper shaft. The inclusion of dual auxiliary switches provides crucial position feedback, ensuring your building automation system knows exactly where the damper stands at all times.
Key Benefits
- High torque performance: Provides 221 lb-in (25 Nm) to drive large dampers without the risk of under-sizing.
- Fully adjustable control: The adjustable start/span offset allows for precise modulation in complex HVAC logic.
- Integrated feedback: Features two dual auxiliary switches for reliable end-stop signaling and position verification.
- Rugged construction: Housed in a die-cast aluminum alloy for maximum durability in demanding mechanical rooms.
- Simplified installation: Equipped with a 3-foot standard cable and self-centering jaws to speed up field mounting.
Common Questions
What is the runtime for a full 90-degree rotation?
The GBB164.1U has a nominal positioning time of 125 to 150 seconds, providing smooth and stable modulation without hunting.
Can this actuator be used in failsafe applications?
No, this is a non-spring return damper actuator. On a loss of power, the unit will remain in its last position. If you require a failsafe (spring return) option, you would need to look at the GCA or GMA series.
How do I adjust the auxiliary switches?
The switches can be adjusted using a flat-blade screwdriver to turn the adjustment dials to the specific rotation angle where you need a signal to be triggered.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $354.46
-65%$354.46
$124.06Siemens Building Technology GBB164.1U Actuator
As a technician, you know that the Siemens Building Technology GBB164.1U Actuator is a heavy-duty workhorse designed for high-torque applications. This non-spring return (NSR) actuator delivers 221 lb-in of torque, making it the standard choice for larger dampers and high-load air handling systems. Operating on 24VAC/DC power, it utilizes a 0-10Vdc modulating control signal for precision placement. One of the standout features of the GBB164.1U is the adjustable span and offset capability (0..5 VDC span, 2..30 VDC offset), allowing you to fine-tune the stroke to match specific system requirements. Built with a NEMA 2 (IP54) enclosure and featuring a self-centering shaft coupling, this OpenAir damper actuator ensures a secure, no-slip connection that minimizes side loading on the damper shaft. The inclusion of dual auxiliary switches provides crucial position feedback, ensuring your building automation system knows exactly where the damper stands at all times.
Key Benefits
- High torque performance: Provides 221 lb-in (25 Nm) to drive large dampers without the risk of under-sizing.
- Fully adjustable control: The adjustable start/span offset allows for precise modulation in complex HVAC logic.
- Integrated feedback: Features two dual auxiliary switches for reliable end-stop signaling and position verification.
- Rugged construction: Housed in a die-cast aluminum alloy for maximum durability in demanding mechanical rooms.
- Simplified installation: Equipped with a 3-foot standard cable and self-centering jaws to speed up field mounting.
Common Questions
What is the runtime for a full 90-degree rotation?
The GBB164.1U has a nominal positioning time of 125 to 150 seconds, providing smooth and stable modulation without hunting.
Can this actuator be used in failsafe applications?
No, this is a non-spring return damper actuator. On a loss of power, the unit will remain in its last position. If you require a failsafe (spring return) option, you would need to look at the GCA or GMA series.
How do I adjust the auxiliary switches?
The switches can be adjusted using a flat-blade screwdriver to turn the adjustment dials to the specific rotation angle where you need a signal to be triggered.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
