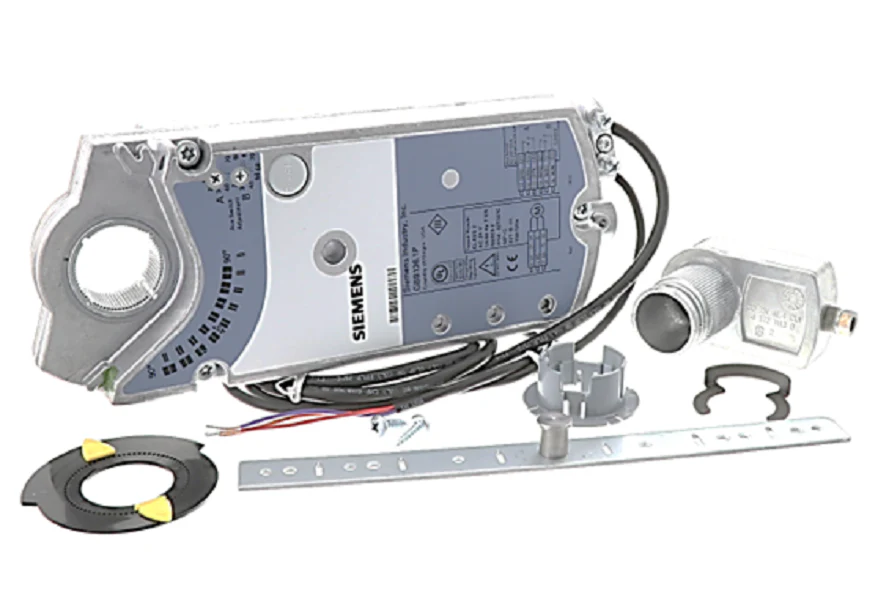

Siemens Building Technology GBB136.1P Actuator
The Siemens GBB136.1P is a high-torque OpenAir electronic damper actuator designed for three-position floating control in demanding HVAC applications. Engineered for non-spring return (NSR) operation, this rotary actuator delivers 221 lb-in (25 Nm) of torque, making it suitable for managing large dampers in constant volume (CAV) or variable air volume (VAV) systems. This unit features a robust all-metal housing and a self-centering shaft coupling that simplifies installation and ensures long-term reliability on plenum-rated jobs. Operating on 24V AC/DC power, the GBB136.1P includes independently adjustable dual auxiliary switches for precise position feedback or control of peripheral equipment. With a 125-second run time and a focus on quiet, low-power performance, this Siemens actuator is a staple for contractors maintaining mixed air, exhaust, or face and bypass dampers.
- High Torque Output: Delivers 221 lb-in (25 Nm) torque to handle large-scale HVAC dampers without performance lag.
- Precision Control: Utilizes three-position (floating) control logic for accurate air regulation in commercial ventilation systems.
- Integrated Monitoring: Comes standard with dual auxiliary switches for monitoring actuator position and signaling external safety or control circuits.
- Installer Focused: Features a self-centering shaft coupling and 3-foot plenum-rated cable to reduce field labor and meet strict code requirements.
- Durability: Constructed with a rugged, die-cast aluminum NEMA 2/IP54 housing to withstand harsh mechanical environments.
Common Questions
What is the primary application for the Siemens GBB136.1P?
This actuator is specifically built for non-fail safe rotary damper applications requiring high torque, such as mixed air and return air dampers in large air handling units.
Does this model include position feedback?
The GBB136.1P utilizes 3-point floating control and includes two auxiliary switches for end-position signaling, though it does not provide a continuous 0-10V feedback signal.
Can I install this in a plenum-rated ceiling?
Yes, this model features a plenum cable (18 AWG) and meets the necessary standards for installation in return air plenums.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
