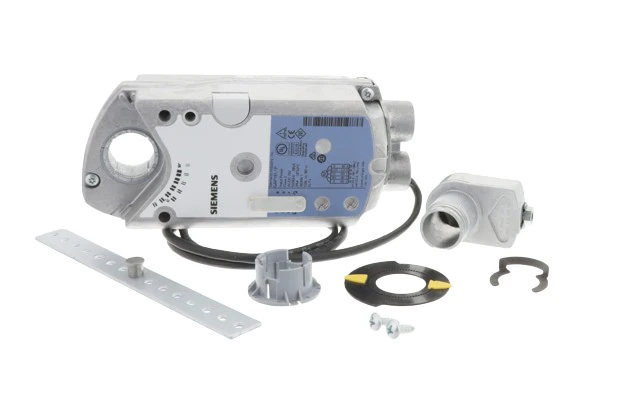

Siemens Building Technology GAP191.1P Actuator
The Siemens GAP191.1P is a high-performance, fast-acting damper actuator engineered for critical airflow control in laboratory fume hoods, plenum spaces, and variable volume systems. Delivering 53 lb-in torque with a specialized 2-second runtime, this non-spring return actuator (NSR) ensures immediate response to control signals, maintaining precise pressure and air velocity in sensitive environments. The GAP191.1P features a brushless DC motor with integrated stall protection, ensuring long-term reliability without the need for limit switches. Its universal control signal capabilities allow for seamless integration with 24VAC/DC systems, accepting 0-10Vdc, 2-10Vdc, 4-20mA, or floating inputs. Designed with a self-centering shaft coupling and a 3-foot plenum-rated cable, it simplifies installation on round or square damper shafts. This OpenAir electronic actuator is built for technicians who require fail-in-place functionality and high-accuracy positioning in demanding HVACR applications.
Key Benefits:- Rapid 2-Second Response: Optimized for high-speed airflow adjustments in critical lab and VAV environments.
- Universal Input Compatibility: Supports 0-10Vdc modulating, floating, and two-position control signals for maximum versatility.
- Fail-In-Place Security: Maintains the last commanded damper position upon power loss, preventing sudden system pressure shifts.
- Precise Shaft Mounting: Features a self-centering coupling that accommodates 1/4" to 3/4" round and 1/4" to 1/2" square shafts.
- Plenum Rated: Includes a 3-foot cable suitable for use in plenum air spaces, meeting UL residential and commercial standards.
Is the GAP191.1P suitable for fume hood applications?
Yes, the 2-second runtime is specifically designed to meet the rapid response requirements of laboratory exhaust and fume hood safety systems.
Does this actuator require an external position feedback sensor?
No, the Siemens GAP191.1P includes standard 0-10Vdc position feedback for real-time monitoring via the building automation system.
Can I install this on an existing 24V float control system?
Absolutely. This model is compatible with 24VAC/DC power and supports floating, two-position, and proportional control inputs.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
