Siemens Building Technology ASK75.3U Weather Shield
The Siemens Building Technology ASK75.3U Weather Shield is a field-installable protective enclosure designed specifically for OpenAir GEB and GMA Series damper actuators. Engineered to maintain system integrity in exposed environments, this kit provides a NEMA 3R rating when installed in the vertical position with outdoor-rated conduit fittings. This rating ensures reliable protection against rain, sleet, snow, and external ice formation, effectively preventing moisture ingress from compromising the electronic components of the actuator.

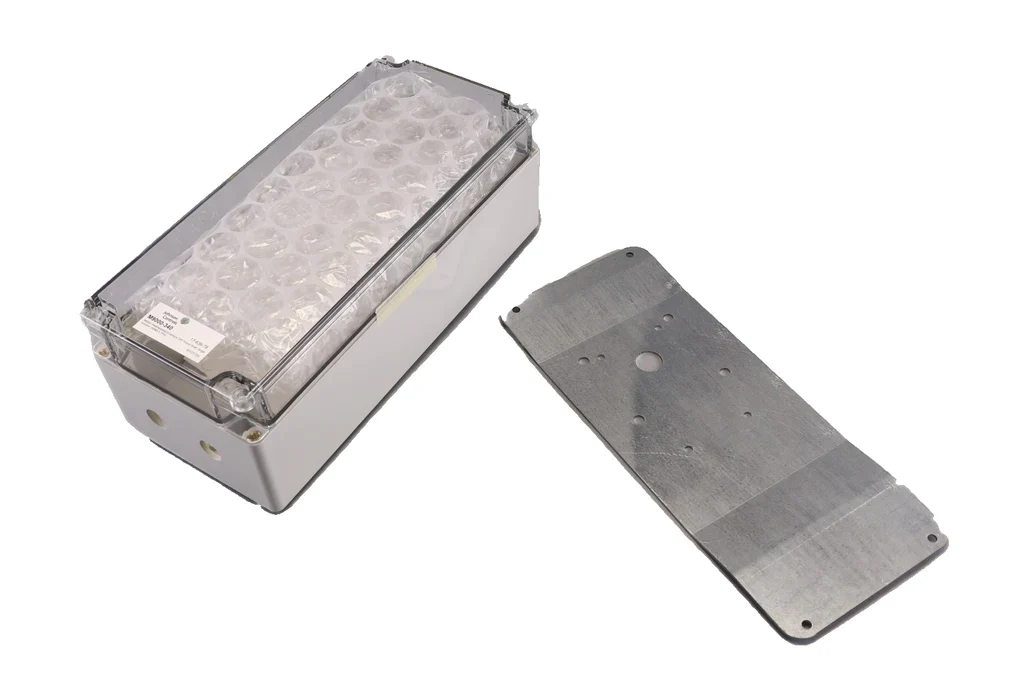

For the technician, the Siemens ASK75.3U simplifies outdoor installations by including a comprehensive hardware package: a durable cover, a base plate with factory-installed gasketing, 15 TEK self-drilling screws, and the necessary anti-rotation mounting bracket. The base plate features integrated 1/2-inch conduit knockouts, facilitating clean wiring runs and secure connections. This kit is the standard solution for converting indoor-rated actuators for outdoor HVAC damper control applications, ensuring the 132 lb-in GEB or 62 lb-in GMA units operate within their specified environmental parameters regardless of ambient conditions.
- NEMA 3R Protection: Shields critical OpenAir damper actuators from rain, snow, and ice when vertically mounted.
- Complete Installation Kit: Includes factory-installed gasketing and all necessary TEK screws for a secure, airtight seal.
- Broad Compatibility: Specifically engineered for a precise fit with Siemens GEB and GMA Series rotary electronic actuators.
- Integrated Conduit Access: Features built-in knockouts for 1/2-inch conduit fittings to streamline industrial wiring.
Common Questions
Does this kit provide NEMA 4X protection?
No, the ASK75.3U is rated for NEMA 3R. If your application requires protection against hosedown or corrosive agents (NEMA 4X), the ASK75.7U would be the appropriate alternative.
Which actuator series is this weather shield compatible with?
This shield is designed for OpenAir GEB (Non-spring return) and GMA (Spring return) series actuators. It is not intended for use with GBB, GCA, or smaller GAP/GQD series units.
Can I mount this in any orientation?
For the NEMA 3R rating to be valid, the Siemens ASK75.3U must be installed in the vertical position. Horizontal mounting may compromise the shed-water design of the enclosure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
