Siemens Building Technology ASK71.14 Linkage Control Kit
The Siemens ASK71.14 Linkage Control Kit is an essential field-mounting solution engineered for rigid surface applications requiring mechanical conversion from rotary to linear stroke output. Designed for professional integration with OpenAir GEB and GMA actuators, this bracket and crank arm assembly provides a secure transition for damper control when the actuator cannot be direct-coupled. The kit is purpose-built to facilitate indirect mounting for dampers, allowing technicians to maintain precise control over mechanical linkages in constrained spaces where a standard shaft mount is impractical.
As a veteran's choice for building automation systems, the ASK71.14 ensures stable actuator positioning, minimizing lateral stress on the output drive while maintaining high operational accuracy. The heavy-duty mounting kit includes the necessary bracketry and crank arm components to interface seamlessly with Siemens damper actuators, supporting reliable torque transfer across the linkage assembly. Note that while this kit provides the mechanical interface for the actuator, the damper push rod must be sourced separately to complete the installation.
Key Benefits- Ensures robust actuator linkage stability for surface-mounted HVAC control applications.
- Compatible with a wide range of OpenAir series, specifically the GMA and GEB actuators.
- Supports linear stroke requirements for indirect mounting on damper frames or rigid surfaces.
- Reduces installation time in retrofit scenarios where shaft access is limited or obstructed.
- Engineered for high-durability performance in commercial and industrial building technology environments.
Is the ASK71.14 compatible with GCA series actuators?
No, the ASK71.14 is specifically designed for the GMA and GEB actuator foot print. For GCA, GBB, or GIB actuators, the ASK71.4 linkage kit should be used to ensure proper bracket alignment and mechanical fit.
Does the ASK71.14 include the damper push rod?

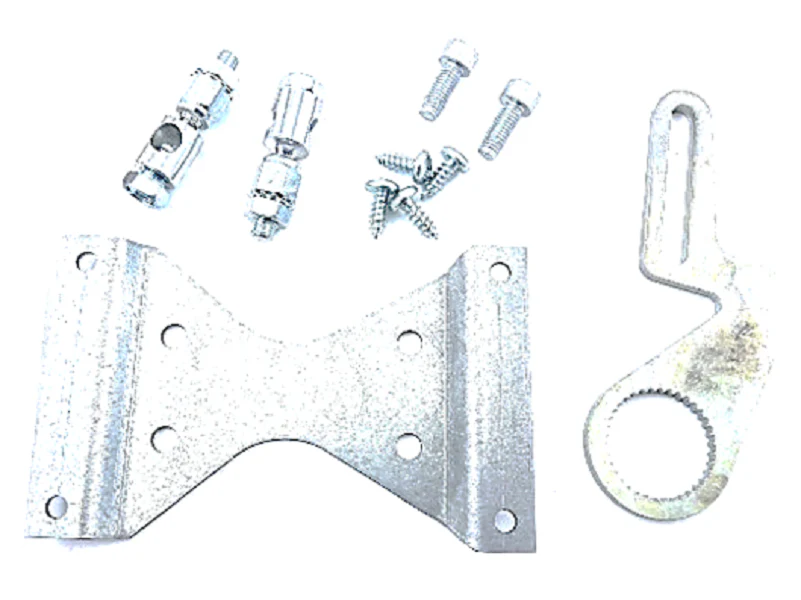

The kit includes the mounting bracket and the crank arm assembly for the actuator side. The damper push rod is not included and must be sized according to your specific field installation requirements.
Can this kit be used for floor mounting?
While the ASK71.14 is primarily for rigid surface or frame mounting to achieve a linear stroke, it is often utilized in custom retrofit configurations where a secure, non-shaft-mounted solution is necessary for damper automation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
